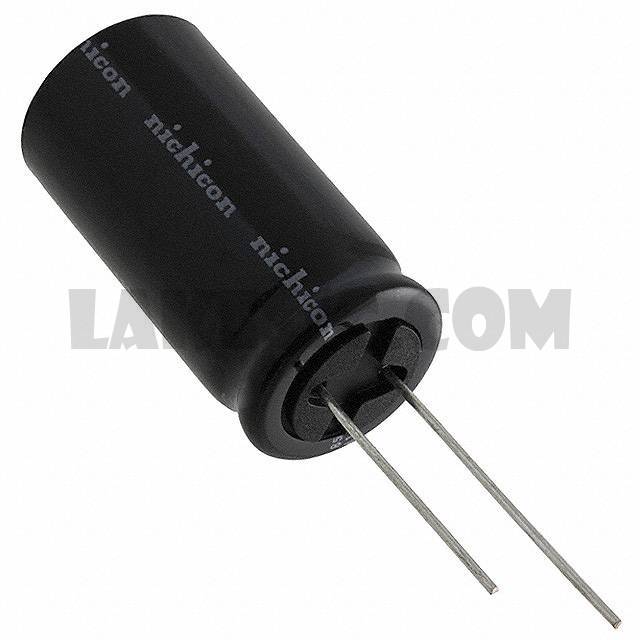

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UDB Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UDB
Packaging	Bulk
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.02A @ 420Hz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.437" (36.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
