Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UDB Series Datasheet
Standard Package	500
Manufacturer	Nichicon
Series	UDB
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	2.2µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	Audio
Ripple Current @ High Frequency	320mA @ 9kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.532" (13.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

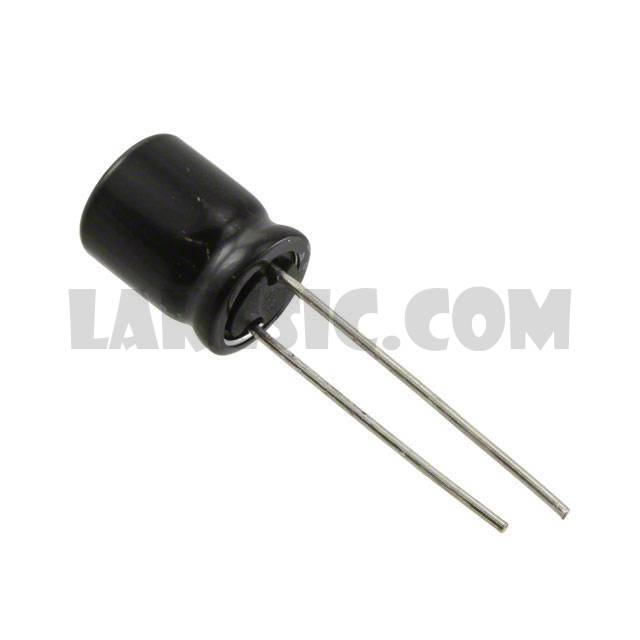

Package / Case	Radial, Can
