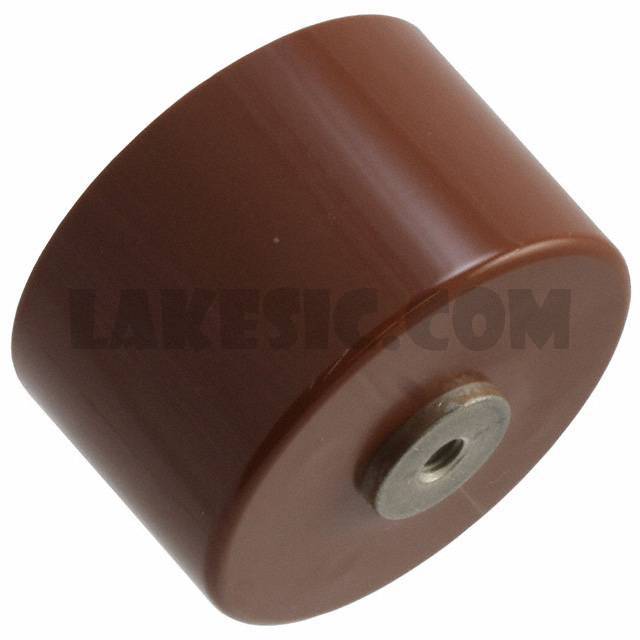

UHV-11A

Part NumberUHV-11A

ManufacturerTDK Corporation

DescriptionCAP CER 1000PF 50KV Z5T DISK

DatasheetUHV Series

Package / CaseDisk, Metal Fitting - Threaded

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1000pF ±10% 50000V (50kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded

To learn about the specification of UHV-11A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UHV-11A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UHV-11A.
We are offering UHV-11A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UHV-11A - Product Attributes

UHV-11A - Related Products

More >>

UHV1V102MHD

Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV1V680MED

Nichicon, 68µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHV

View

UHV-222A

TDK Corporation, 400pF ±10% 20000V (20kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV1V152MHD

Nichicon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV-7A

TDK Corporation, 700pF ±10% 40000V (40kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV1C122MPD

Nichicon, 1200µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV-231A

TDK Corporation, 200pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV-233A

TDK Corporation, 700pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV1A332MHD

Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV1E561MPD

Nichicon, 560µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

UHV-6A

TDK Corporation, 2700pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV

View

UHV1A222MPD

Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV

View

Categories	Capacitors / Ceramic Capacitors
Datasheet	UHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	UHV
Packaging	Tray
Part Status	Active
Capacitance	1000pF
Tolerance	±10%
Voltage - Rated	50000V (50kV)
Temperature Coefficient	Z5T
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder
Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	1.890" Dia x 1.378" L (48.00mm x 35.00mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-
