Categories	Capacitors / Ceramic Capacitors
Datasheet	UHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	UHV
Packaging	Bulk
Part Status	Active
Capacitance	1400pF
Tolerance	±10%
Voltage - Rated	20000V (20kV)
Temperature Coefficient	Z5T
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder

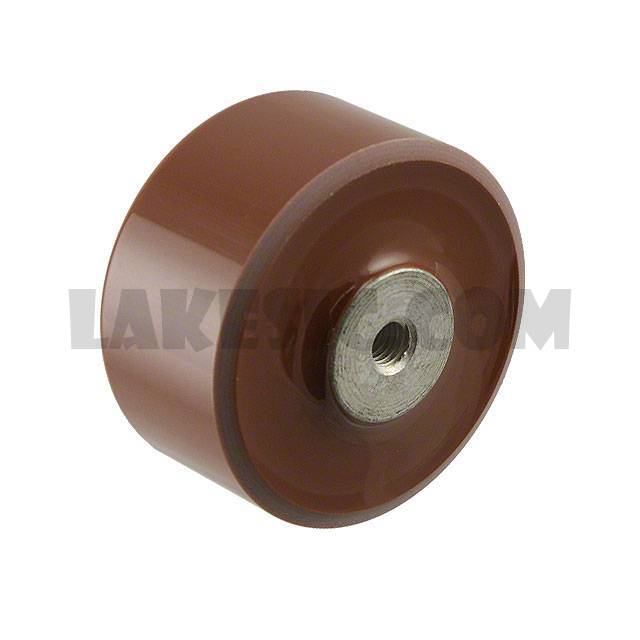

Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	1.496" Dia x 0.906" L (38.00mm x 23.00mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-

UHV1C681MPD	Nichicon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1E471MPD1TD	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1V221MPD	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1V101MED	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHV	View
UHV1C122MPD	Nichicon, 1200µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1C102MPD6	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV-231A	TDK Corporation, 200pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV1A272MHD	Nichicon, 2700µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1C392MHD	Nichicon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1C152MPD	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1E182MHD	Nichicon, 1800µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1V102MHD1TO	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View

UHV-1A

Part NumberUHV-1A
