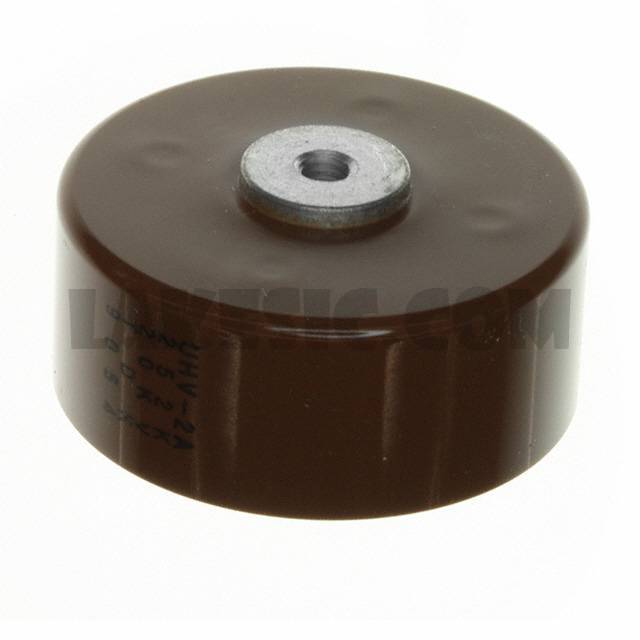

UHV-2A

UHV-2A

Part NumberUHV-2A

ManufacturerTDK Corporation

DescriptionCAP CER 2500PF 20KV Z5T DISK

DatasheetUHV Series

Package / CaseDisk, Metal Fitting - Threaded

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2500pF ±10% 20000V (20kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded

To learn about the specification of UHV-2A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UHV-2A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UHV-2A.
We are offering UHV-2A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UHV-2A - Product Attributes

Categories	Capacitors / Ceramic Capacitors
Datasheet	UHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	UHV
Packaging	Bulk
Part Status	Active
Capacitance	2500pF
Tolerance	±10%
Voltage - Rated	20000V (20kV)
Temperature Coefficient	Z5T
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder
Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	1.890" Dia x 0.906" L (48.00mm x 23.00mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-
