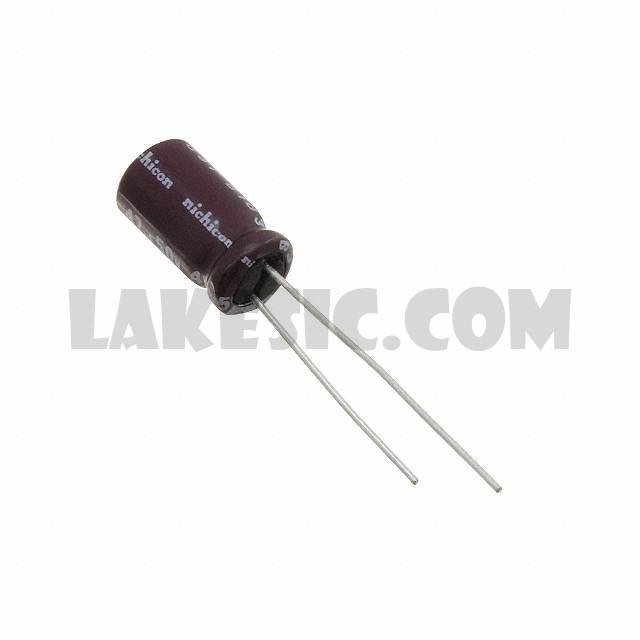

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ULD Series
Standard Package	200
Manufacturer	Nichicon
Series	ULD
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	133mA @ 120Hz
Ripple Current @ High Frequency	190mA @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

ULD2E8R2MPD1TD	Nichicon, 8.2µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2W5R6MPD1TD	Nichicon, 5.6µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, ULD	View
ULD2D3R3MED1TD	Nichicon, 3.3µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD1C221MPD1TD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD1V470MED1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2G2R2MPD1TD	Nichicon, 2.2µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD2C100MPD1TD	Nichicon, 10µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2D5R6MED1TD	Nichicon, 5.6µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2D120MPD1TD	Nichicon, 12µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2W6R8MPD1TD	Nichicon, 6.8µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, ULD	View
ULD2D4R7MED1TD	Nichicon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD1V470MED1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View

ULD1H470MED

Part NumberULD1H470MED
