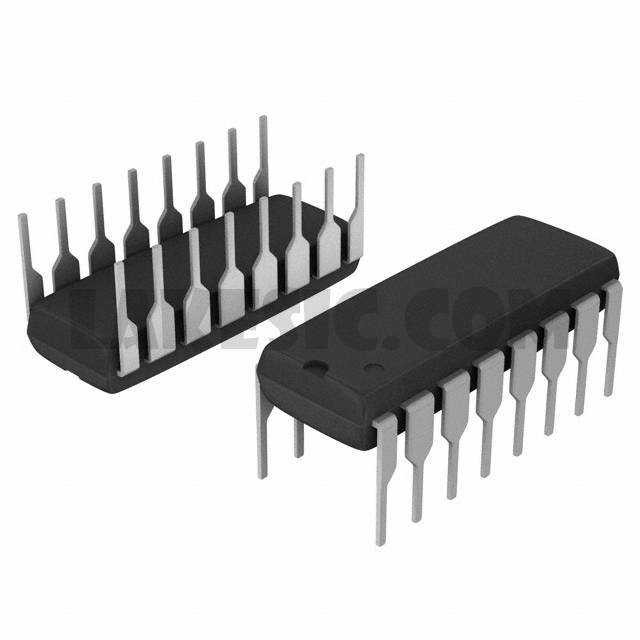

ULN2004AD16-U

Part NumberULN2004AD16-U

ManufacturerDiodes Incorporated

DescriptionIC PWR RELAY 7NPN 1:1 16DIP

DatasheetULN2002A-ULN2004A

Package / Case16-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Through Hole 16-PDIP

To learn about the specification of ULN2004AD16-U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ULN2004AD16-U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ULN2004AD16-U.
We are offering ULN2004AD16-U for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ULN2004AD16-U - Product Attributes

ULN2004AD16-U - Related Products

More >>

BCM847BS,115

Nexperia USA Inc., Bipolar (BJT) Transistor Array 2 NPN (Dual) Matched Pair 45V 100mA 250MHz 300mW Surface Mount 6-TSSOP,

View

BCM56DSX

Nexperia USA Inc., Bipolar (BJT) Transistor Array 2 NPN (Dual) Matched Pair 80V 1A 155MHz 500mW Surface Mount 6-TSOP, Automotive, AEC-Q101

View

ULN2001A

STMicroelectronics, Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Through Hole 16-DIP,

View

DMC206E20R

Panasonic Electronic Components, Bipolar (BJT) Transistor Array 2 NPN (Dual) 20V 15mA 650MHz 300mW Surface Mount Mini6-G4-B,

View

MMDTA42-7-F

Diodes Incorporated, Bipolar (BJT) Transistor Array 2 NPN (Dual) 300V 500mA 50MHz 300mW Surface Mount SOT-26,

View

ULN2065B

STMicroelectronics, Bipolar (BJT) Transistor Array 4 NPN Darlington (Quad) 80V 1.75A 1W Through Hole 16-PowerDIP (20x7.10),

View

STA403A

Sanken, Bipolar (BJT) Transistor Array 4 NPN Darlington (Quad) 100V 4A 4W Through Hole 10-SIP,

View

PHPT610030NKX

Nexperia USA Inc., Bipolar (BJT) Transistor Array 2 NPN (Dual) 100V 3A 140MHz 1.25W Surface Mount LFPAK56D,

View

BC847BVC-7

Diodes Incorporated, Bipolar (BJT) Transistor Array 2 NPN (Dual) 45V 100mA 100MHz 150mW Surface Mount SOT-563,

View

MMDT3904-7-F

Diodes Incorporated, Bipolar (BJT) Transistor Array 2 NPN (Dual) 40V 200mA 300MHz 200mW Surface Mount SOT-363,

View

ULN2003ADR2G

ON Semiconductor, Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-SOIC,

View

EMX18T2R

Rohm Semiconductor, Bipolar (BJT) Transistor Array 2 NPN (Dual) 12V 500mA 320MHz 150mW Surface Mount EMT6,

View

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ULN2002A-ULN2004A
Standard Package	5000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	7 NPN Darlington
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce	-
Power - Max	-
Frequency - Transition	-
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
