Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMA Series
Standard Package	2000
Manufacturer	Nichicon
Series	UMA
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	15mA @ 120Hz
Ripple Current @ High Frequency	22.5mA @ 10kHz
Lead Spacing	0.039" (1.00mm)
Size / Dimension	0.118" Dia (3.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UMA1HR47MDD1TP	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA0G331MDD1TP	Nichicon, 330µF 4V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1C470MDD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA0G471MDD	Nichicon, 470µF 4V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1HR47MDD1TP	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1C4R7MCD2TP	Nichicon, 4.7µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1A101MDD1TP	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1H220MDD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1H0R1MCD2TP	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1A221MDD1TP	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA0G101MDD1TP	Nichicon, 100µF 4V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA0J470MDD1TP	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View

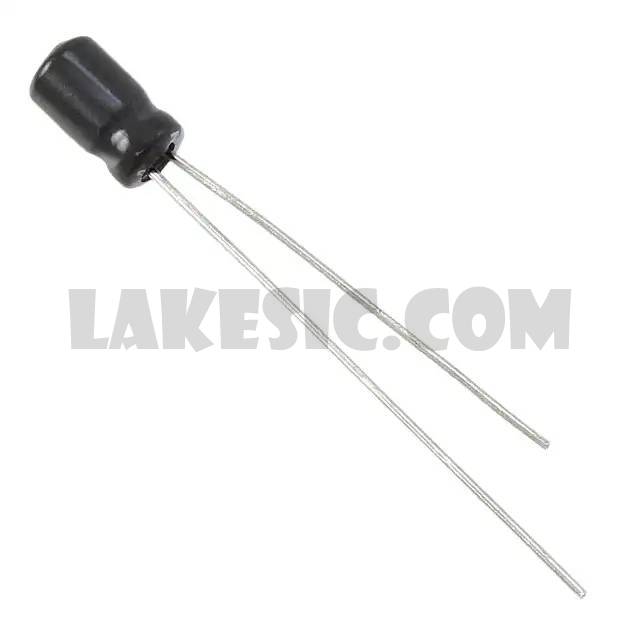

UMA0J100MCD2TP

Part NumberUMA0J100MCD2TP
