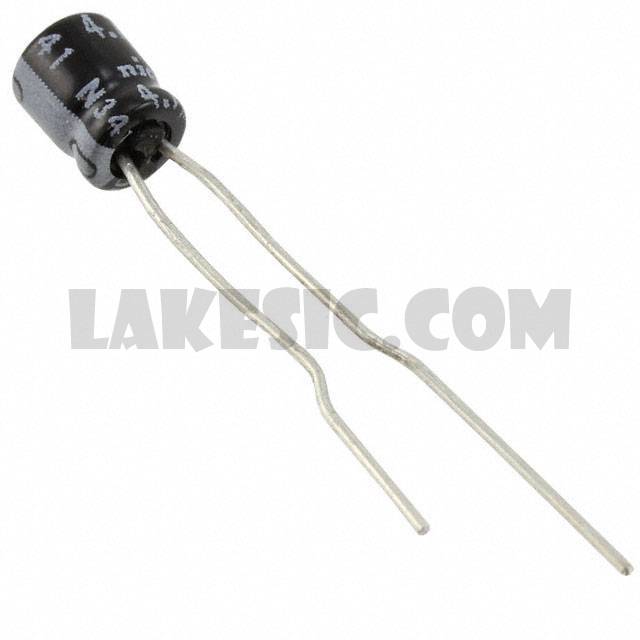

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMT Series
Standard Package	2000
Manufacturer	Nichicon
Series	UMT
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	15mA @ 120Hz
Ripple Current @ High Frequency	22.5mA @ 10kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
