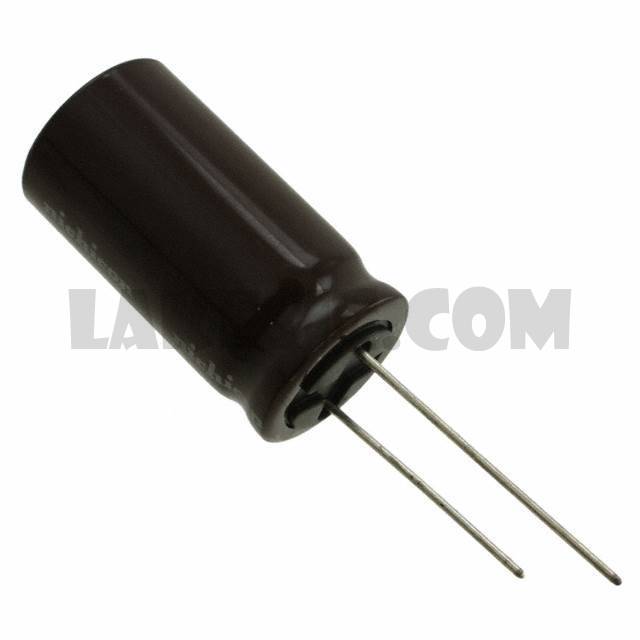

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPA Series
Standard Package	50
Manufacturer	Nichicon
Series	UPA
Packaging	Bulk
Part Status	Active
Capacitance	5600µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.389A @ 120Hz
Ripple Current @ High Frequency	2.81A @ 100kHz
Impedance	17 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPA1C821MPD6TD	Nichicon, 820µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1V271MPD	Nichicon, 270µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA1E102MPD	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1E331MPD1TD	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA0J102MPD6TD	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA0J561MPD1TD	Nichicon, 560µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA1C332MHD6TN	Nichicon, 3300µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1A821MPD1TD	Nichicon, 820µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA1A102MPD6TD	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1E472MHD1TN	Nichicon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1V821MHD1TO	Nichicon, 820µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1C471MPD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View

UPA1C562MHD

Part NumberUPA1C562MHD
