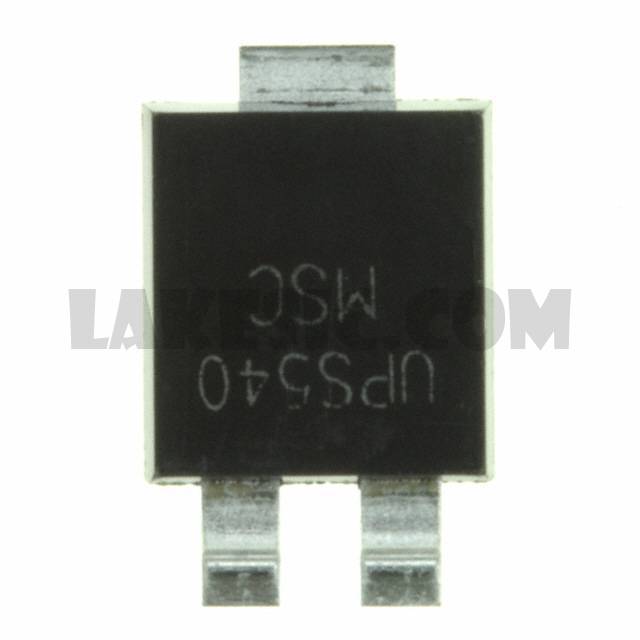

UPS540E3/TR13


UPS540E3/TR13

Part NumberUPS540E3/TR13

Manufacturer

Description

Datasheet

Package / CasePowermite®3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UPS540E3/TR13 - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package5000
ManufacturerMicrosemi Corporation
Series-
PackagingTape & Reel (TR)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If540mV @ 5A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr500µA @ 40V
Capacitance @ Vr, F250pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CasePowermite®3
Supplier Device PackagePowermite 3
Operating Temperature - Junction-55°C ~ 125°C
Base Part NumberUPS540
