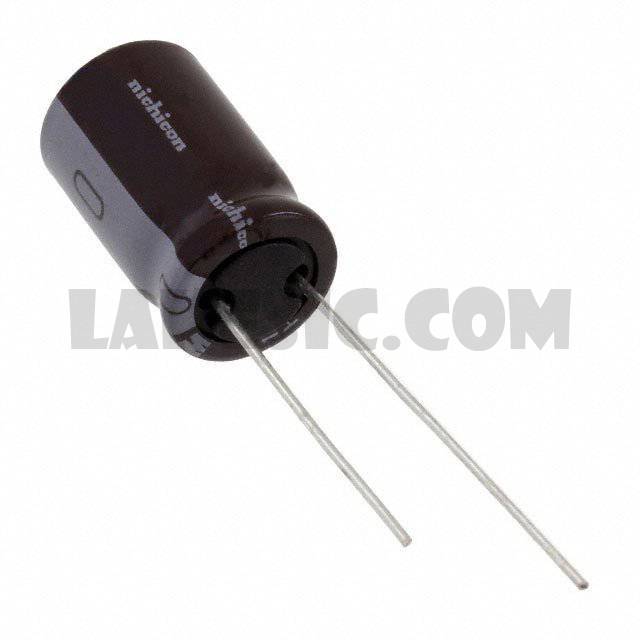

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPX Series
Standard Package	1
Manufacturer	Nichicon
Series	UPX
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	20000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	378mA @ 120Hz
Ripple Current @ High Frequency	504mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPX1V470MPD1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1C331MPD1TD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V2R2MPD1TD	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V220MPD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V3R3MPD	Nichicon, 3.3µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V101MPD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1E221MHD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1E471MHD1TN	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1E101MPD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V220MPD1TD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1C471MHD1TO	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V010MPD1TD	Nichicon, 1µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View

UPX1A331MPD1TD

Part NumberUPX1A331MPD1TD
