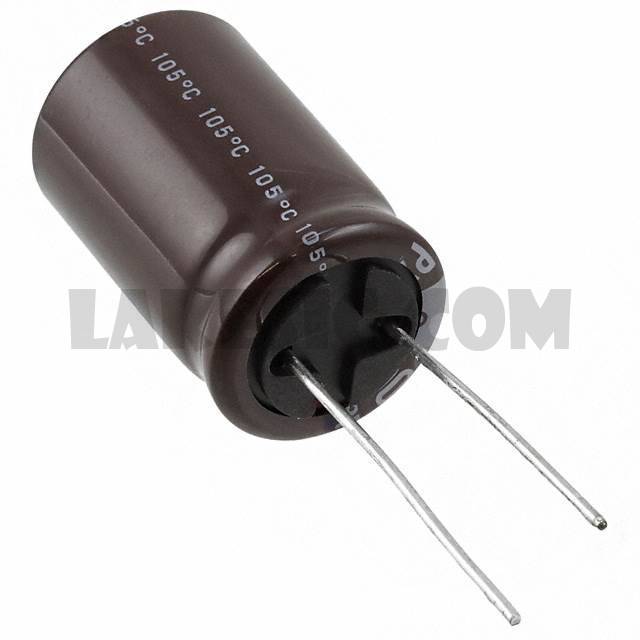

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPX Series
Standard Package	250
Manufacturer	Nichicon
Series	UPX
Packaging	Tape & Box (TB)
Part Status	Not For New Designs
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	20000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.008A @ 120Hz
Ripple Current @ High Frequency	1.344A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
