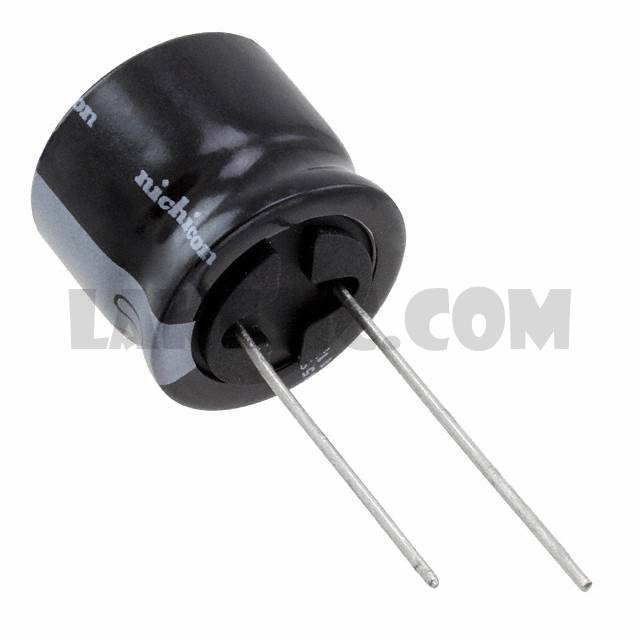

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	URS Series
Standard Package	250
Manufacturer	Nichicon
Series	URS
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.36A @ 120Hz
Ripple Current @ High Frequency	1.564A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

URS2C680MHD1TN	Nichicon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2G470MHD1TN	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2A331MHD1TN	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2AR22MDD1TD	Nichicon, 0.22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1V4R7MDD1TD	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1H010MDD1TD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1C102MHD1TO	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1V331MPD1TD	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1H3R3MDD1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1E102MHD1TO	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2D680MHD1TN	Nichicon, 68µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS0J102MPD1TD	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View

URS1E222MHD1TN

Part NumberURS1E222MHD1TN
