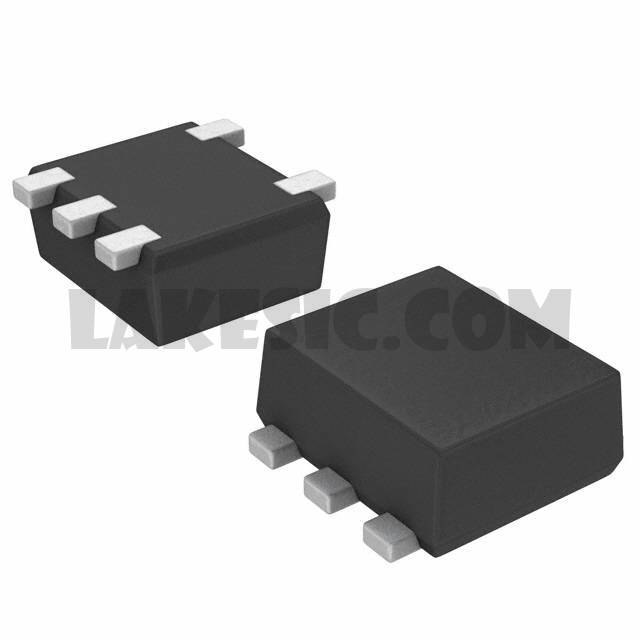

US5U3TR

US5U3TR

Part NumberUS5U3TR

ManufacturerRohm Semiconductor

DescriptionMOSFET N-CH 30V 1.5A TUMT5

DatasheetUS5U3

Package / Case6-SMD (5 Leads), Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 1.5A (Ta) 1W (Ta) Surface Mount TUMT5

To learn about the specification of US5U3TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add US5U3TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of US5U3TR.
We are offering US5U3TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

US5U3TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	US5U3
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	240mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	2.2nC @ 4.5V
Vgs (Max)	12V
Input Capacitance (Ciss) (Max) @ Vds	80pF @ 10V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TUMT5
Package / Case	6-SMD (5 Leads), Flat Lead
