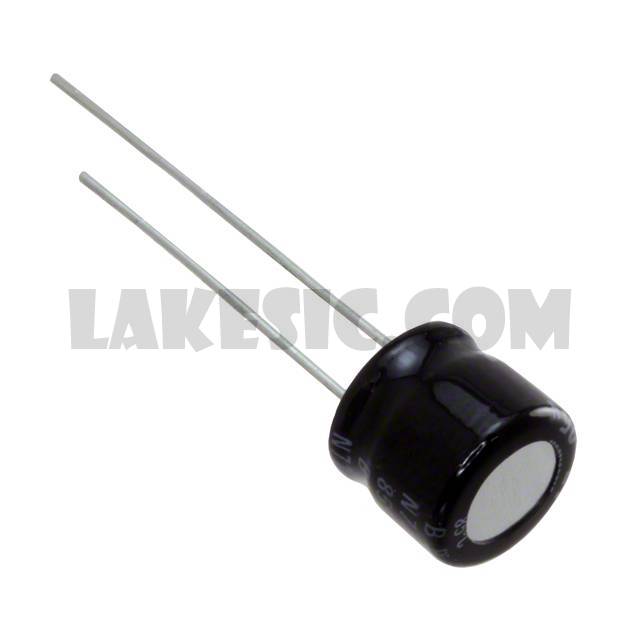

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	USP Series
Standard Package	200
Manufacturer	Nichicon
Series	USP
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	125mA @ 120Hz
Ripple Current @ High Frequency	187.5mA @ 10kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

USP1C4R7MDD	Nichicon, 4.7µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1HR47MDD	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1E470MDD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1H100MDD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1C100MDD	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1C330MDD	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1C470MDD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1C470MDD1TP	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1C470MDD1TP	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1HR22MDD	Nichicon, 0.22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1V100MDD	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View
USP1C101MDD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USP	View

USP1C101MDD

Part NumberUSP1C101MDD
