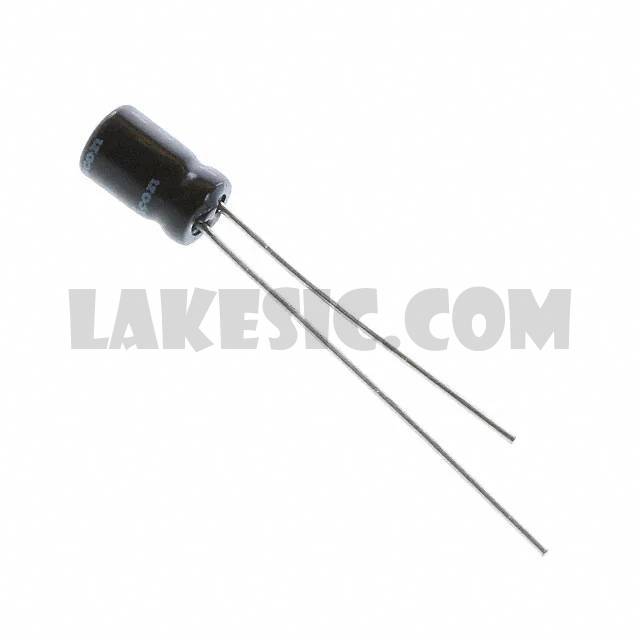

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	USP Series
Standard Package	200
Manufacturer	Nichicon
Series	USP
Packaging	Bulk
Part Status	Active
Capacitance	0.33µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	3.5mA @ 120Hz
Ripple Current @ High Frequency	5.25mA @ 10kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
