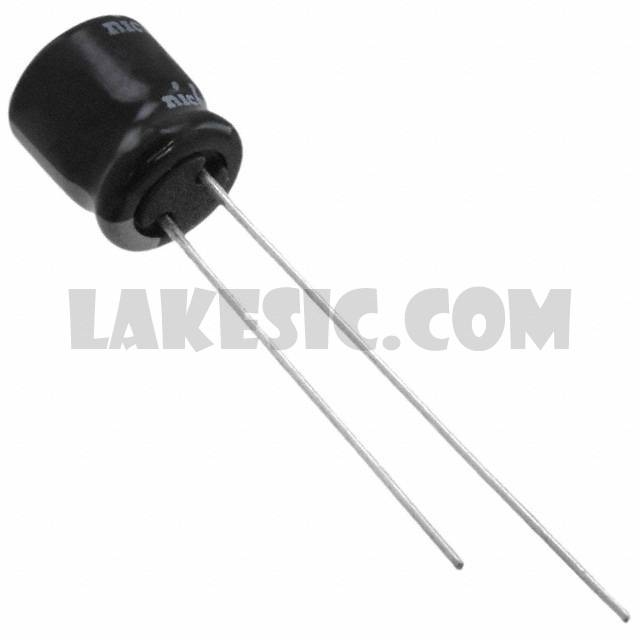

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	USV Series
Standard Package	1
Manufacturer	Nichicon
Series	USV
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	44mA @ 120Hz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

USV1V100MFD1TE	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1H100MFD1TP	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1V100MFD	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1H010MFD1TP	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1HR22MFD	Nichicon, 0.22µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1E100MFD1TP	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1H010MFD1TP	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1C100MFD	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1E470MFD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1C470MFD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1C100MFD1TE	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View
USV1V4R7MFD1TP	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, USV	View

USV1H100MFD1TP

Part NumberUSV1H100MFD1TP
