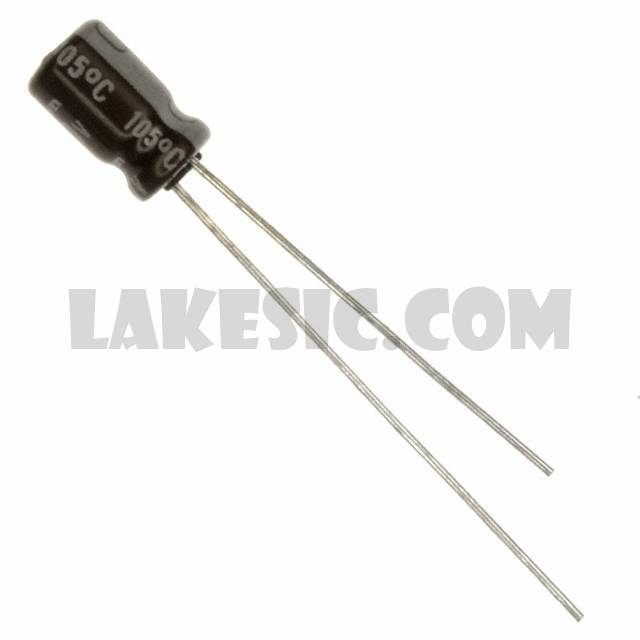

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UTT Series
Standard Package	2000
Manufacturer	Nichicon
Series	UTT
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	11.1mA @ 120Hz
Ripple Current @ High Frequency	37mA @ 100kHz
Impedance	7.4 Ohms
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UTT1C220MDD1TP	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1V220MDD1TP	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1H4R7MDD1TP	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1V4R7MDD1TP	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1E220MDD1TP	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1E331MPD	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1E470MDD1TD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1C470MDD1TP	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1H220MDD1TD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1C470MDD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1C331MPD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT0J470MDD	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View

UTT1V4R7MDD1TP

Part NumberUTT1V4R7MDD1TP
