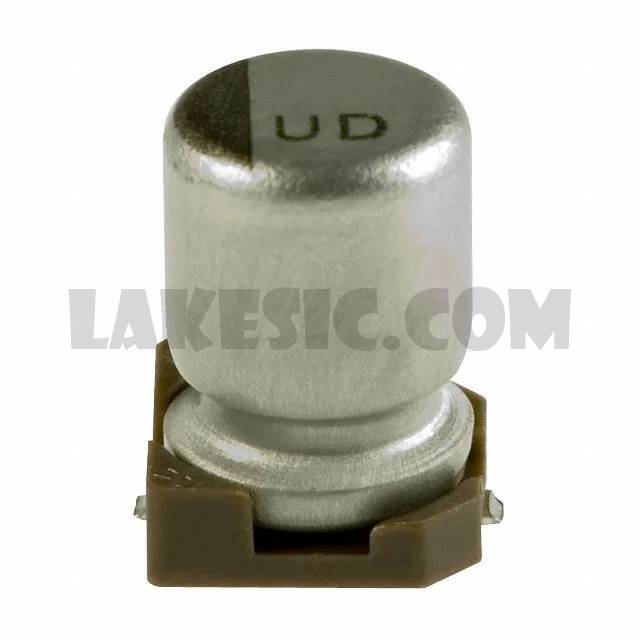

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUD Series
Standard Package	1
Manufacturer	Nichicon
Series	UUD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	15mA @ 120Hz
Ripple Current @ High Frequency	30mA @ 100kHz
Impedance	5 Ohms
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUD0J152MNL1GS	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUD	View
UUD0J681MNL1GS	Nichicon, 680µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUD	View
UUD1A102MNL1GS	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUD	View
UUD1C470MCL1GS	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUD	View
UUD1A470MCL1GS	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUD	View
UUD1V151MNL1GS	Nichicon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUD	View
UUD1V150MCL1GS	Nichicon, 15µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUD	View
UUD1C680MCL1GS	Nichicon, 68µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUD	View
UUD1V221MNL1GS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUD	View
UUD1V331MNL1GS	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUD	View
UUD1C151MCL1GS	Nichicon, 150µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUD	View
UUD1C221MCL1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUD	View

UUD1H010MCL1GS

Part NumberUUD1H010MCL1GS
