Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUP Series
Standard Package	1000
Manufacturer	Nichicon
Series	UUP
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	16mA @ 120Hz
Ripple Current @ High Frequency	24mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount

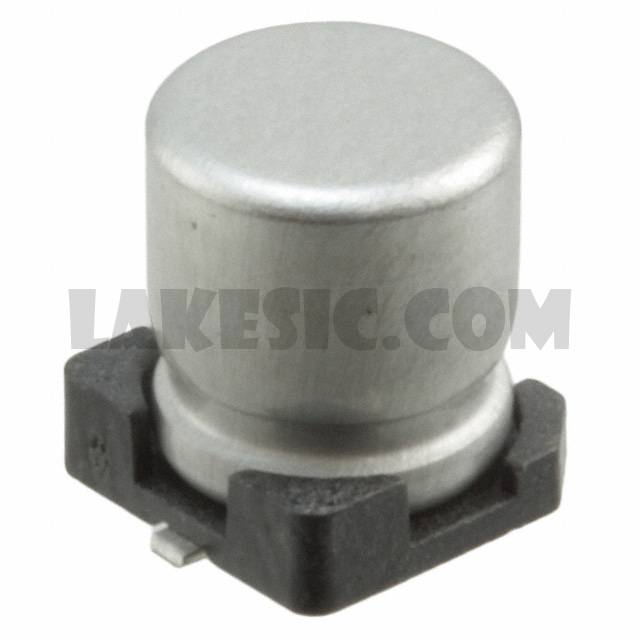

Package / Case	Radial, Can - SMD

UUP1H010MCL1GS	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1HR47MCL1GS	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1C330MCL1GS	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1E4R7MCL1GS	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1V100MCL1GS	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1A100MCL1GS	Nichicon, 10µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1A100MCL1GS	Nichicon, 10µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1C4R7MCL1GS	Nichicon, 4.7µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1HR22MCL1GS	Nichicon, 0.22µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1V3R3MCL1GS	Nichicon, 3.3µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1H3R3MCL1GS	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1E4R7MCL1GS	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View

UUP1E4R7MCL1GS

Part NumberUUP1E4R7MCL1GS
