VEC2616-TL-W

VEC2616-TL-W

Part NumberVEC2616-TL-W

ManufacturerON Semiconductor

DescriptionMOSFET N/P-CH 60V 3A/2.5A VEC8

DatasheetVEC2616

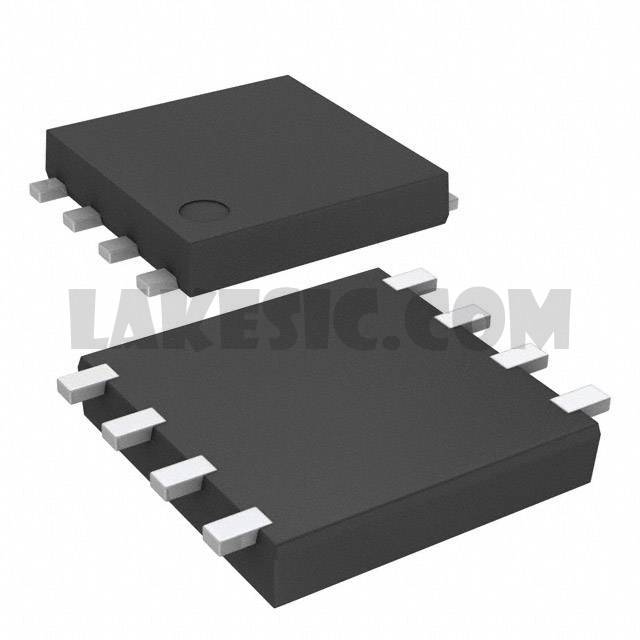

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 60V 3A, 2.5A 1W Surface Mount SOT-28FL/VEC8

To learn about the specification of VEC2616-TL-W, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VEC2616-TL-W with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VEC2616-TL-W.
We are offering VEC2616-TL-W for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VEC2616-TL-W - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	VEC2616
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate, 4V Drive
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	3A, 2.5A
Rds On (Max) @ Id, Vgs	80mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	505pF @ 20V
Power - Max	1W
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	SOT-28FL/VEC8
