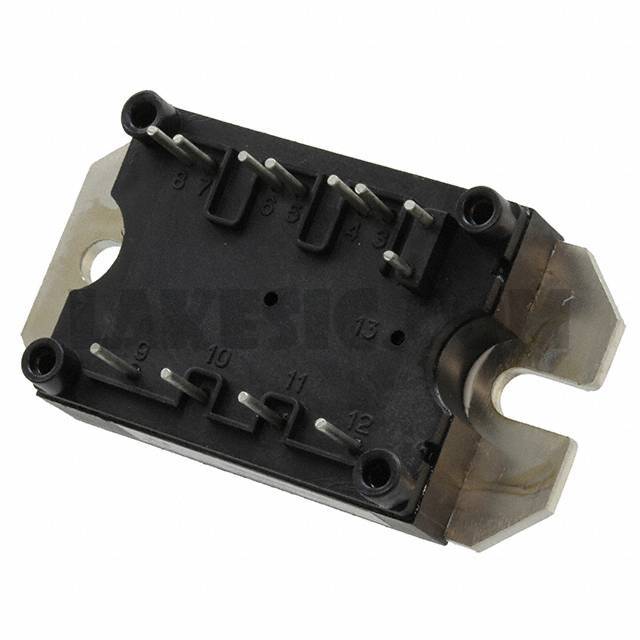

VS-50MT060WHTAPBF

Part NumberVS-50MT060WHTAPBF

ManufacturerVishay Semiconductor Diodes Division

DescriptionIGBT 600V 114A 658W MTP

DatasheetVS-50MT060WHTAPBF

Package / Case12-MTP Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Half Bridge 600V 114A 658W Chassis Mount MTP

To learn about the specification of VS-50MT060WHTAPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-50MT060WHTAPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-50MT060WHTAPBF.
We are offering VS-50MT060WHTAPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-50MT060WHTAPBF - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

VS-50MT060WHTAPBF

Standard Package

Manufacturer

Vishay Semiconductor Diodes Division

Series

Part Status

Active

IGBT Type

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

114A

Power - Max

658W

Vce(on) (Max) @ Vge, Ic

3.2V @ 15V, 100A

Current - Collector Cutoff (Max)

400µA

Input Capacitance (Cies) @ Vce

7.1nF @ 30V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

12-MTP Module

Supplier Device Package

MTP
