VS-70TPS16PBF

VS-70TPS16PBF

Part NumberVS-70TPS16PBF

ManufacturerVishay Semiconductor Diodes Division

DescriptionSCR PHSE CTRL 75A 1600V SUPER247

DatasheetVS-70TPS12,16PbF

Package / CaseTO-274AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

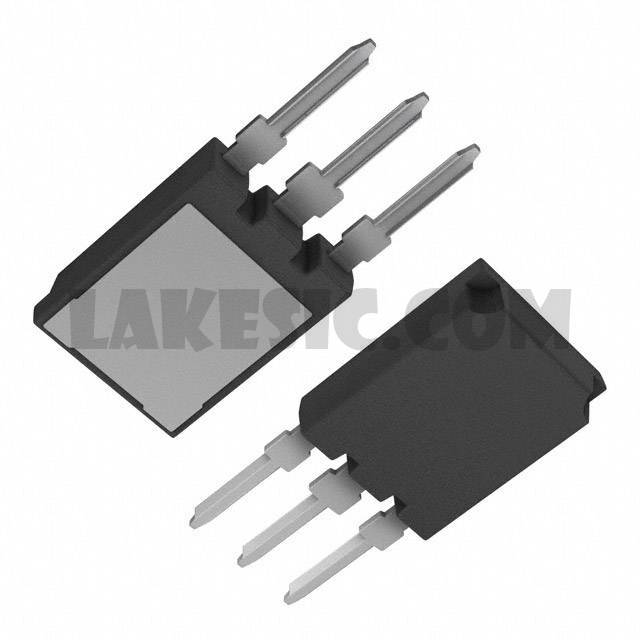

Detailed DescriptionSCR 1.6kV 75A Standard Recovery Through Hole SUPER-247™ (TO-274AA)

To learn about the specification of VS-70TPS16PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-70TPS16PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-70TPS16PBF.
We are offering VS-70TPS16PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-70TPS16PBF - Product Attributes

Categories	Discrete Semiconductor Products / Thyristors - SCRs
Datasheet	VS-70TPS12,16PbF
Standard Package	500
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tube
Part Status	Active
Voltage - Off State	1.6kV
Voltage - Gate Trigger (Vgt) (Max)	1.5V
Current - Gate Trigger (Igt) (Max)	100mA
Voltage - On State (Vtm) (Max)	1.4V
Current - On State (It (AV)) (Max)	70A
Current - On State (It (RMS)) (Max)	75A
Current - Hold (Ih) (Max)	200mA
Current - Off State (Max)	1mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1400A @ 50Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-274AA
Supplier Device Package	SUPER-247™ (TO-274AA)
Base Part Number	70TPS*
