Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	VS-GBPC Series
Standard Package	100
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tray
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	200V
Current - Average Rectified (Io)	25A
Current - Reverse Leakage @ Vr	2mA @ 200V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal
Package / Case	4-Square, GBPC-A
Supplier Device Package	GBPC-A
Base Part Number	GBPC2502

GBPC2508	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V QC Terminal GBPC,	View
GBPC3501	ON Semiconductor, Bridge Rectifier Single Phase Standard 100V QC Terminal GBPC,	View
VS-36MT160	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 1.6kV QC Terminal D-63,	View
VS-36MT20	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 200V QC Terminal D-63,	View
GBPC1206	ON Semiconductor, Bridge Rectifier Single Phase Standard 600V QC Terminal GBPC,	View
VS-36MT10	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 100V QC Terminal D-63,	View
VS-26MT80	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 800V QC Terminal D-63,	View
GBPC25005-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V QC Terminal GBPC,	View
GBPC1210	ON Semiconductor, Bridge Rectifier Single Phase Standard 1kV QC Terminal GBPC,	View
GBPC2508-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 800V QC Terminal GBPC,	View
GBPC1201	ON Semiconductor, Bridge Rectifier Single Phase Standard 100V QC Terminal GBPC,	View
VS-36MT120	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 1.2kV QC Terminal D-63,	View

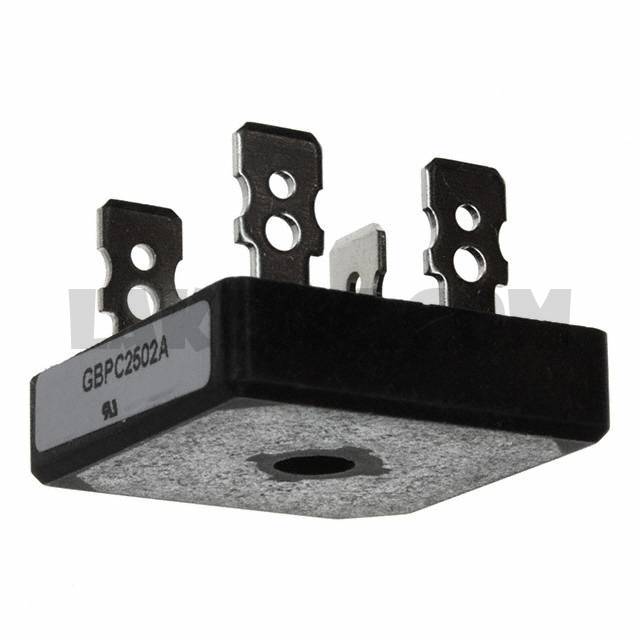

VS-GBPC2502A

Part NumberVS-GBPC2502A
