Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	VS-GBPC Series
Standard Package	100
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tray
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	400V
Current - Average Rectified (Io)	25A
Current - Reverse Leakage @ Vr	2mA @ 400V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal
Package / Case	4-Square, GBPC-A
Supplier Device Package	GBPC-A
Base Part Number	GBPC2504

GBPC1510-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV QC Terminal GBPC,	View
GBPC35005-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V QC Terminal GBPC,	View
GBPC2510-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV QC Terminal GBPC,	View
GBPC1201	ON Semiconductor, Bridge Rectifier Single Phase Standard 100V QC Terminal GBPC,	View
GBPC1206	ON Semiconductor, Bridge Rectifier Single Phase Standard 600V QC Terminal GBPC,	View
GBPC2506T	GeneSiC Semiconductor, Bridge Rectifier Single Phase Standard 600V QC Terminal GBPC,	View
GBPC2506-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 600V QC Terminal GBPC,	View
VS-26MT20	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 200V QC Terminal D-63,	View
KBPC10005-G	Comchip Technology, Bridge Rectifier Single Phase Standard 50V QC Terminal KBPC,	View
VUO36-16NO8	IXYS, Bridge Rectifier Three Phase Standard 1.6kV QC Terminal FO-B,	View
GBPC2502-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 200V QC Terminal GBPC,	View
VS-26MB80A	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 800V QC Terminal D-34,	View

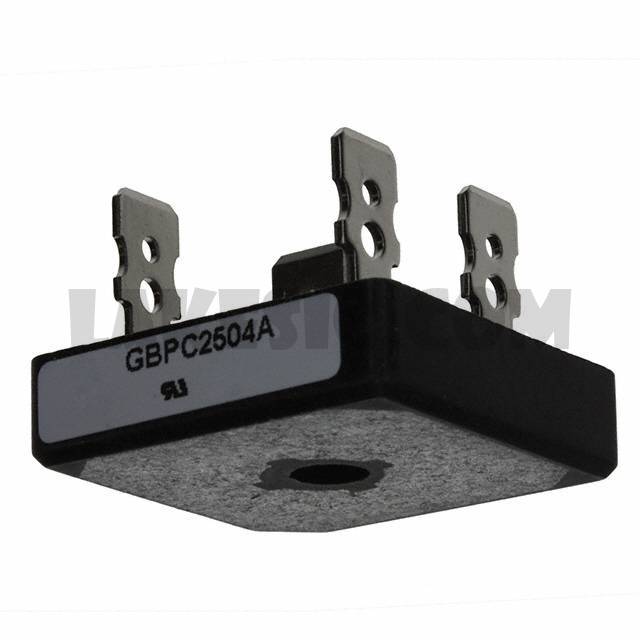

VS-GBPC2504A
