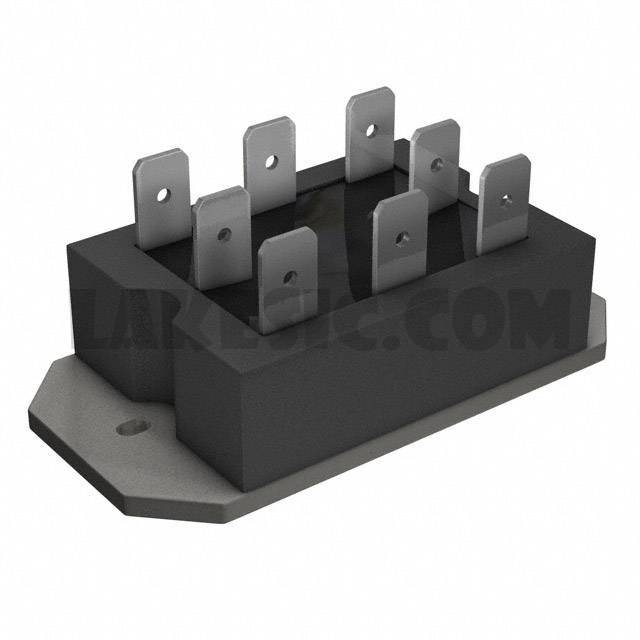

VS-P135

VS-P135

Part NumberVS-P135

ManufacturerVishay Semiconductor Diodes Division

DescriptionMOD BRIDGE SCR 25A 1200V PACEPAK

DatasheetVS-P100 Series

Package / Case8-PACE-PAK

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR Module 1.2kV Bridge, Single Phase - All SCRs Chassis Mount 8-PACE-PAK

To learn about the specification of VS-P135, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-P135 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-P135.
We are offering VS-P135 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-P135 - Product Attributes

Categories	Discrete Semiconductor Products / Thyristors - SCRs - Modules
Datasheet	VS-P100 Series
Standard Package	10
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Structure	Bridge, Single Phase - All SCRs
Number of SCRs, Diodes	4 SCRs
Voltage - Off State	1.2kV
Voltage - Gate Trigger (Vgt) (Max)	2V
Current - Gate Trigger (Igt) (Max)	60mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	357A, 375A
Current - Hold (Ih) (Max)	130mA
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	8-PACE-PAK

VS-P135 - Related Products

	VS-P135	Vishay Semiconductor Diodes Division, SCR Module 1.2kV Bridge, Single Phase - All SCRs Chassis Mount 8-PACE-PAK,	View
	VS-P125	Vishay Semiconductor Diodes Division, SCR Module 1.2kV Bridge, Single Phase - SCRs/Diodes (Layout 3) Chassis Mount 8-PACE-PAK,	View
