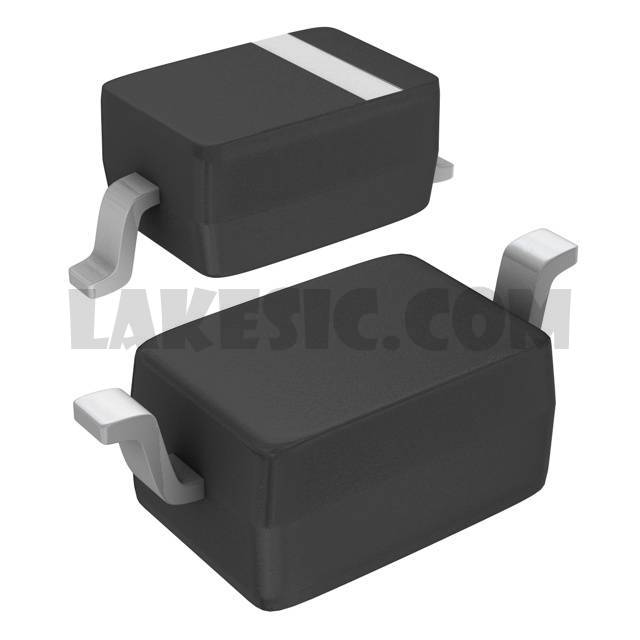

XBS104S13R-G

XBS104S13R-G

Part NumberXBS104S13R-G

ManufacturerTorex Semiconductor Ltd

DescriptionDIODE SCHOTTKY 40V 1A SOD323A

DatasheetXBS104S13R-G

Package / CaseSC-76, SOD-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 1A Surface Mount SOD-323A

To learn about the specification of XBS104S13R-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add XBS104S13R-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of XBS104S13R-G.
We are offering XBS104S13R-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

XBS104S13R-G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	XBS104S13R-G
Standard Package	3000
Manufacturer	Torex Semiconductor Ltd
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	540mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	25ns
Current - Reverse Leakage @ Vr	200µA @ 40V
Capacitance @ Vr, F	35pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323A
Operating Temperature - Junction	125°C (Max)
Base Part Number	XBS104S13
