XR46000ESETR

XR46000ESETR

Part NumberXR46000ESETR

ManufacturerMaxLinear, Inc.

DescriptionMOSFET N-CH 600V 1.5A SOT223

DatasheetXR46000E Datasheet

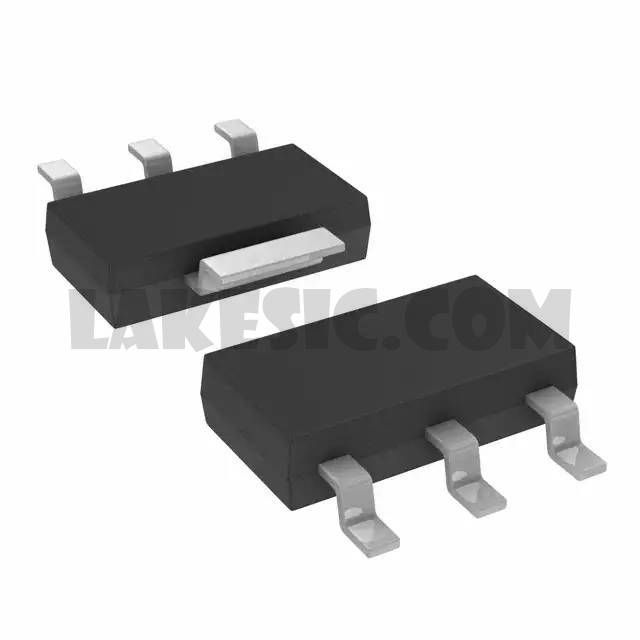

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 1.5A (Tc) 20W (Tc) Surface Mount SOT-223

To learn about the specification of XR46000ESETR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add XR46000ESETR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of XR46000ESETR.
We are offering XR46000ESETR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

XR46000ESETR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	XR46000E Datasheet
Standard Package	1
Manufacturer	MaxLinear, Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	1.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	8Ohm @ 750mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.5nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	170pF @ 25V
FET Feature	-
Power Dissipation (Max)	20W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
