Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	500
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	390µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	819.5mA @ 120Hz
Ripple Current @ High Frequency	1.49A @ 100kHz
Impedance	57 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25YXG220MEFC8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
100YXG82MEFC12.5X16	Rubycon, 82µF 100V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
100YXG390MEFC18X25	Rubycon, 390µF 100V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
6.3YXG1200MEFC10X16	Rubycon, 1200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
10YXG10000MEFC16X40	Rubycon, 10000µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG330MEFCT78X11.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
16YXG120MEFC6.3X11	Rubycon, 120µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
16YXG3900MEFC12.5X40	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG220MEFC10X12.5	Rubycon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
10YXG3300MEFC12.5X25	Rubycon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG120MEFC8X11.5	Rubycon, 120µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
16YXG1000MEFC10X20	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View

100YXG390MEFC18X25

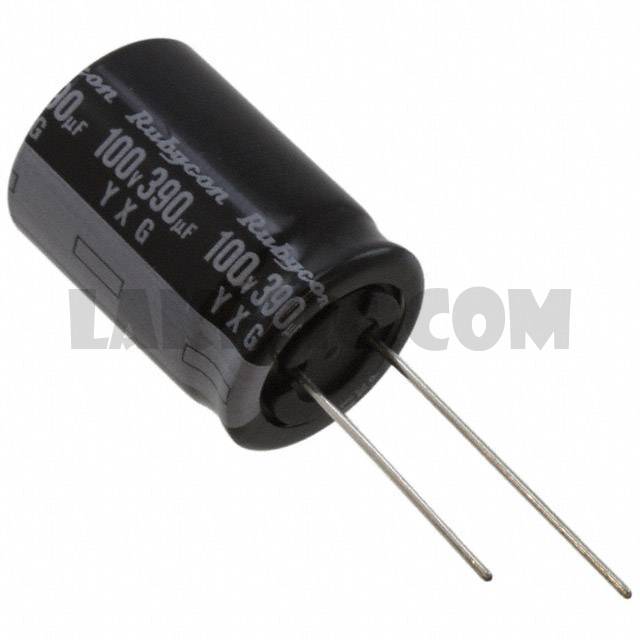

Part Number100YXG390MEFC18X25
