Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	600
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	3900µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.051A @ 120Hz
Ripple Current @ High Frequency	2.93A @ 100kHz
Impedance	21 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25YXG220MEFC8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
63YXG56MEFC8X11.5	Rubycon, 56µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
50YXG100MEFC8X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
6.3YXG2200MEFC10X23	Rubycon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
35YXG3900MEFC18X40	Rubycon, 3900µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG150MEFC8X11.5	Rubycon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
35YXG220MEFC10X12.5	Rubycon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
16YXG120MEFC6.3X11	Rubycon, 120µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
50YXG560MEFC12.5X25	Rubycon, 560µF 50V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG2200MEFC12.5X35	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
10YXG470MEFC8X11.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
6.3YXG1500MEFC10X20	Rubycon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View

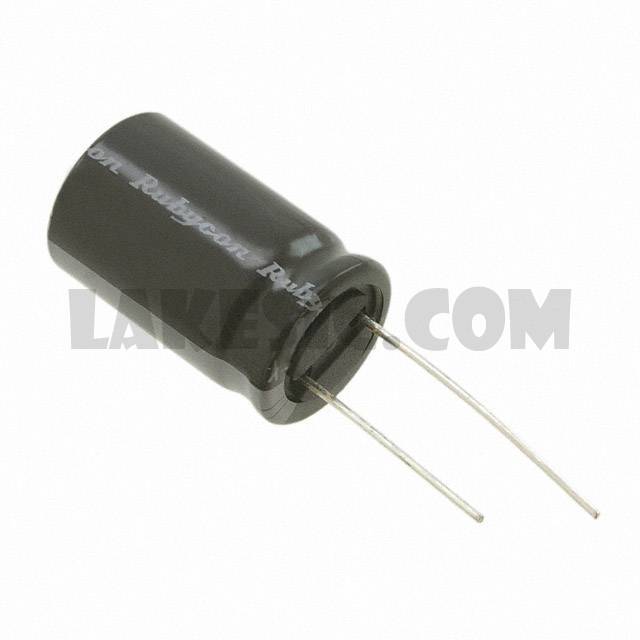

16YXG3900MEFC16X25

Part Number16YXG3900MEFC16X25
