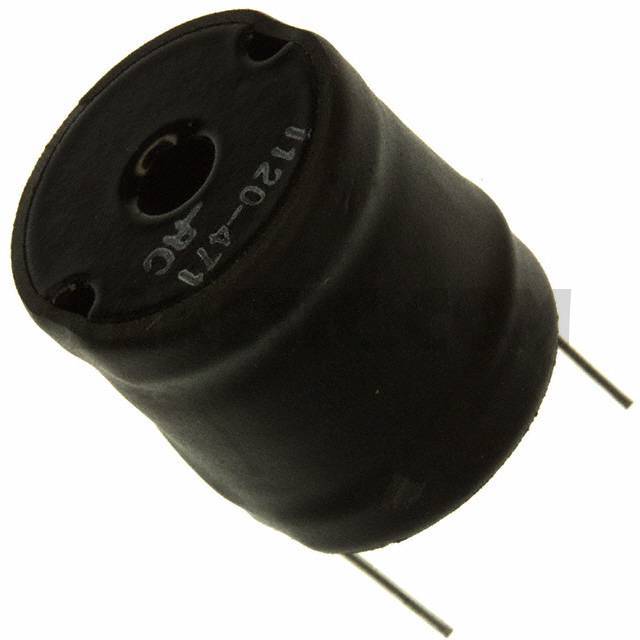

1120-471K-RC


1120-471K-RC

Part Number1120-471K-RC

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

1120-471K-RC - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package206
ManufacturerBourns Inc.
Series1120
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance470µH
Tolerance±10%
Current Rating (Amps)1.6A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)355mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 105°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.810" Dia (20.57mm)
Height - Seated (Max)0.840" (21.34mm)
Base Part Number1120

1120-471K-RC - Related Products

More >>
1110-561K-RC Bourns Inc., 560µH Unshielded Wirewound Inductor 800mA 696mOhm Max Radial, Vertical Cylinder, 1110 View
1130-330K-RC Bourns Inc., 33µH Unshielded Wirewound Inductor 13.5A 17mOhm Max Radial, 1130 View
1120-151K-RC Bourns Inc., 150µH Unshielded Wirewound Inductor 4A 98mOhm Max Radial, Vertical Cylinder, 1120 View
1110-100K-RC Bourns Inc., 10µH Unshielded Wirewound Inductor 9A 10mOhm Max Radial, Vertical Cylinder, 1110 View
1120-471K-RC Bourns Inc., 470µH Unshielded Wirewound Inductor 1.6A 355mOhm Max Radial, Vertical Cylinder, 1120 View
1130-561K-RC Bourns Inc., 560µH Unshielded Wirewound Inductor 4A 205mOhm Max Radial, Vertical Cylinder, 1130 View
1110-221K-RC Bourns Inc., 220µH Unshielded Wirewound Inductor 1.6A 240mOhm Max Radial, Vertical Cylinder, 1110 View
1120-470K-RC Bourns Inc., 47µH Unshielded Wirewound Inductor 5.5A 35mOhm Max Radial, Vertical Cylinder, 1120 View
1140-180K-RC Bourns Inc., 18µH Unshielded Wirewound Inductor 17.2A 8mOhm Max Radial, Vertical Cylinder, 1140 View
1130-272K-RC Bourns Inc., 2.7mH Unshielded Wirewound Inductor 1.3A 1.14Ohm Max Radial, 1130 View
1130-101K-RC Bourns Inc., 100µH Unshielded Wirewound Inductor 9A 34mOhm Max Radial, Vertical Cylinder, 1130 View
1140-101K-RC Bourns Inc., 100µH Unshielded Wirewound Inductor 10.5A 25mOhm Max Radial, Vertical Cylinder, 1140 View
