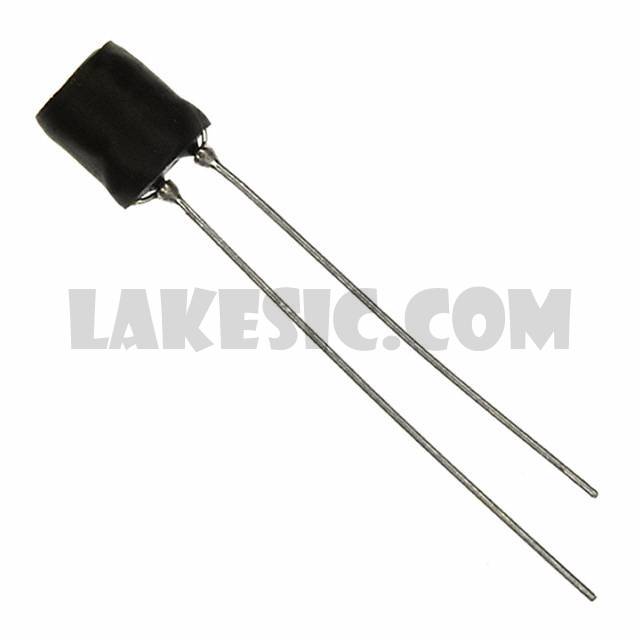

22R153C

22R153C

Part Number22R153C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 15UH 1.35A 70 MOHM TH

Datasheet2200R Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15µH Unshielded Wirewound Inductor 1.35A 70mOhm Max Radial, Vertical Cylinder

To learn about the specification of 22R153C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 22R153C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 22R153C.
We are offering 22R153C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

22R153C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2200R Series
Standard Package	100
Manufacturer	Murata Power Solutions Inc.
Series	2200R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	15µH
Tolerance	±10%
Current Rating (Amps)	1.35A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	70mOhm Max
Q @ Freq	60 @ 500kHz
Frequency - Self Resonant	19.4MHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
