22R686C

22R686C

Part Number22R686C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 68MH 18MA 242 OHM TH

Datasheet2200R Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

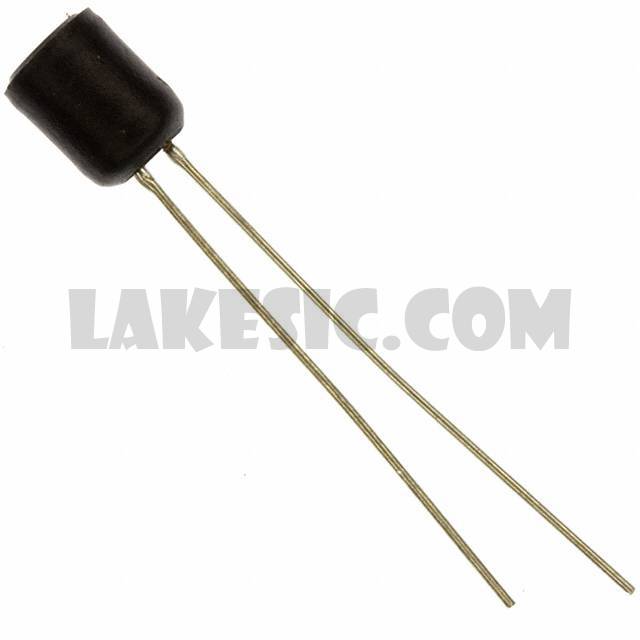

Detailed Description68mH Unshielded Wirewound Inductor 18mA 242Ohm Max Radial, Vertical Cylinder

To learn about the specification of 22R686C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 22R686C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 22R686C.
We are offering 22R686C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

22R686C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2200R Series
Standard Package	100
Manufacturer	Murata Power Solutions Inc.
Series	2200R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	68mH
Tolerance	±10%
Current Rating (Amps)	18mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	242Ohm Max
Q @ Freq	70 @ 50kHz
Frequency - Self Resonant	200kHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
