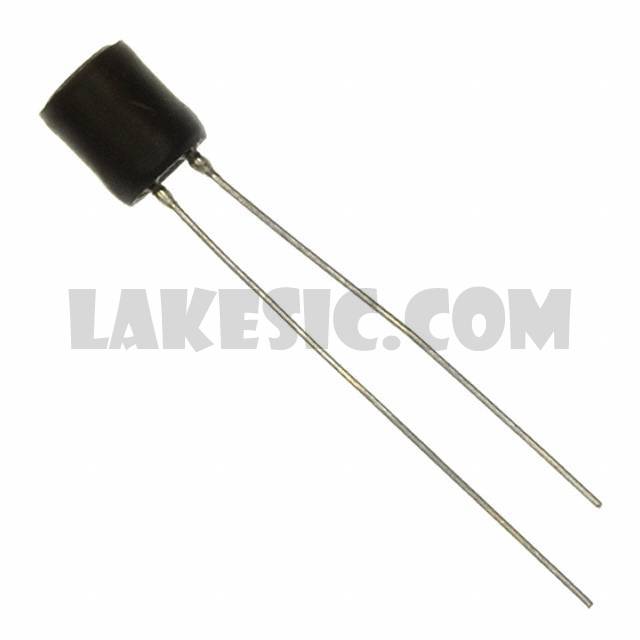

22R155C

22R155C

Part Number22R155C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 1.5MH 130MA 6.49 OHM

Datasheet2200R Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.5mH Unshielded Wirewound Inductor 130mA 6.49Ohm Max Radial, Vertical Cylinder

To learn about the specification of 22R155C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 22R155C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 22R155C.
We are offering 22R155C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

22R155C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2200R Series
Standard Package	100
Manufacturer	Murata Power Solutions Inc.
Series	2200R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	1.5mH
Tolerance	±10%
Current Rating (Amps)	130mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	6.49Ohm Max
Q @ Freq	130 @ 100kHz
Frequency - Self Resonant	1.9MHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
