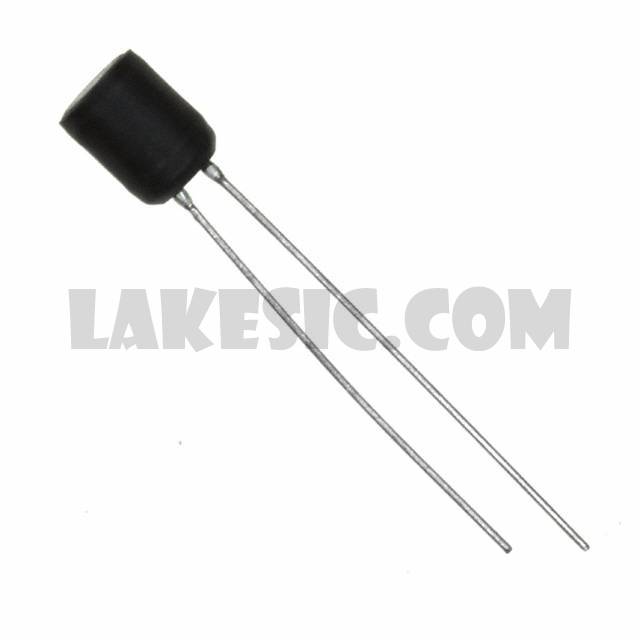

22R685C

22R685C

Part Number22R685C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 6.8MH 72MA 22 OHM TH

Datasheet2200R Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description6.8mH Unshielded Wirewound Inductor 72mA 22Ohm Max Radial, Vertical Cylinder

To learn about the specification of 22R685C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 22R685C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 22R685C.
We are offering 22R685C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

22R685C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2200R Series
Standard Package	100
Manufacturer	Murata Power Solutions Inc.
Series	2200R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	6.8mH
Tolerance	±10%
Current Rating (Amps)	72mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	22Ohm Max
Q @ Freq	145 @ 150kHz
Frequency - Self Resonant	850kHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
