Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

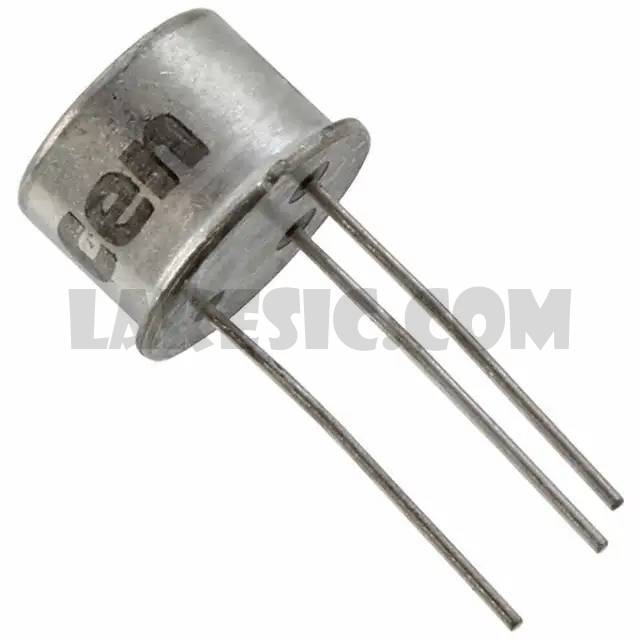

Datasheet	2N5109
Standard Package	500
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	20V
Frequency - Transition	1.2GHz
Noise Figure (dB Typ @ f)	3dB @ 200MHz
Gain	-
Power - Max	1W
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 50mA, 15V
Current - Collector (Ic) (Max)	400mA
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
