Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

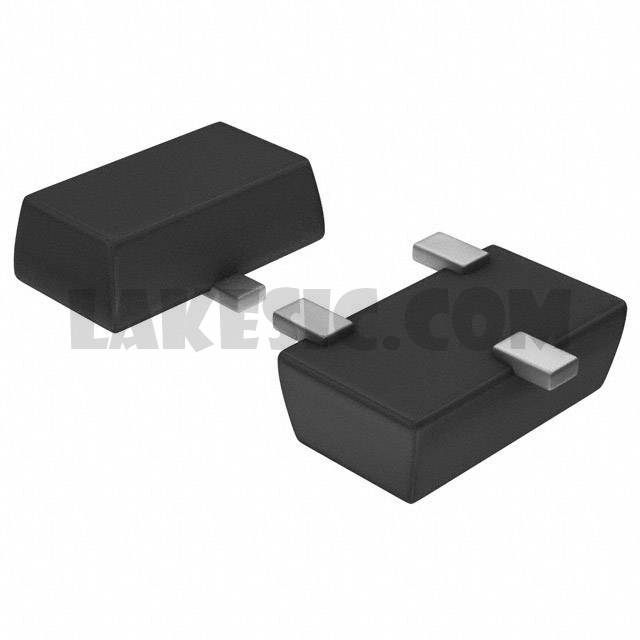

Datasheet	2SC5646A
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	4V
Frequency - Transition	10GHz ~ 12.5GHz
Noise Figure (dB Typ @ f)	1.5dB @ 2GHz
Gain	9.5dB ~ 10.5dB @ 2GHz
Power - Max	100mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 5mA, 1V
Current - Collector (Ic) (Max)	30mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-81
Supplier Device Package	3-SSFP
