Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	RX30 Series
Standard Package	2000
Manufacturer	Rubycon
Series	RX30
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 130°C
Operating Temperature	-25°C ~ 130°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	12mA @ 120Hz
Ripple Current @ High Frequency	60mA @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16RX30330MTA8X11.5	Rubycon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX3047M10X12.5	Rubycon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX3033M8X11.5	Rubycon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
100RX3022M8X11.5	Rubycon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
100RX3047M10X16	Rubycon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
400RX304R7M10X16	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX302200M18X40	Rubycon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
50RX3010M8X11.5	Rubycon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX30100M10X16	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
400RX301M6.3X11	Rubycon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 130°C, RX30	View
200RX304.7M6.3X11	Rubycon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 130°C, RX30	View
63RX301500M18X40	Rubycon, 1500µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View

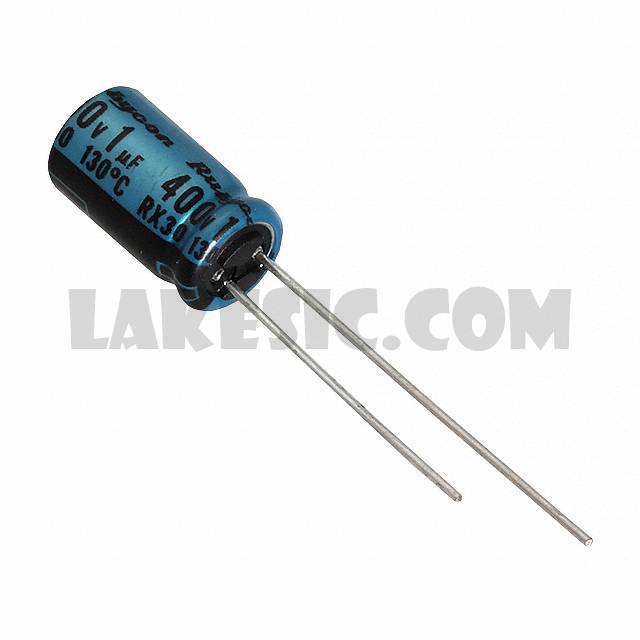

400RX301M6.3X11

Part Number400RX301M6.3X11
