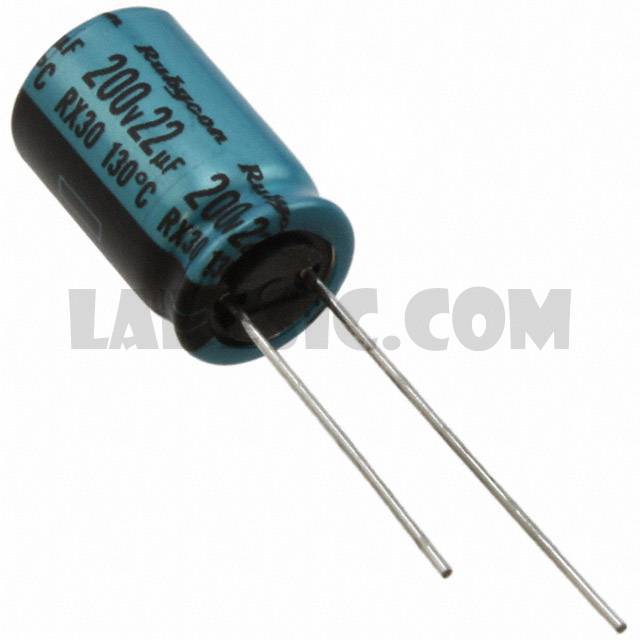

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	RX30 Series
Standard Package	1000
Manufacturer	Rubycon
Series	RX30
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 130°C
Operating Temperature	-25°C ~ 130°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120mA @ 120Hz
Ripple Current @ High Frequency	240mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.709" (18.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
