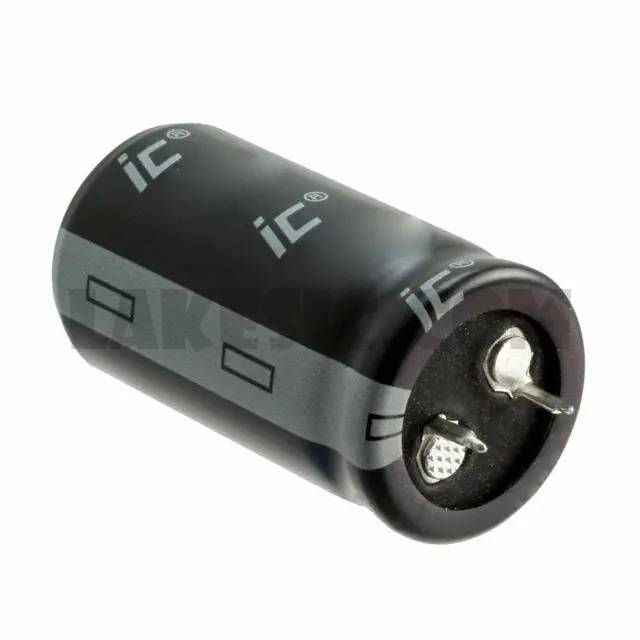

477LBA200M2CE

Part Number477LBA200M2CE

ManufacturerIllinois Capacitor

DescriptionCAP ALUM 470UF 20% 200V SNAP

DatasheetLBA Series Datasheet

Package / CaseRadial, Can - Snap-In

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description470µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 529.11mOhm @ 120Hz 2000 Hrs @ 85°C

To learn about the specification of 477LBA200M2CE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 477LBA200M2CE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 477LBA200M2CE.
We are offering 477LBA200M2CE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

477LBA200M2CE - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LBA Series Datasheet
Standard Package	70
Manufacturer	Illinois Capacitor
Series	LBA
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	529.11mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.8A @ 120Hz
Ripple Current @ High Frequency	2.646A @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
