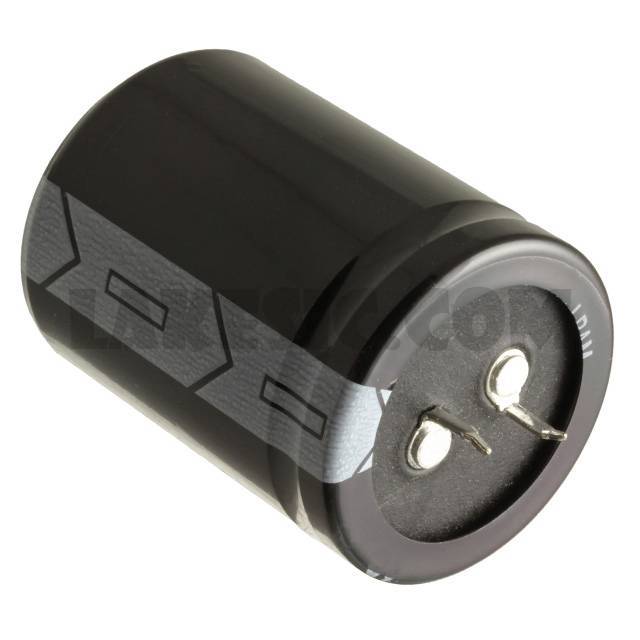

477LBA450M2EH

Part Number477LBA450M2EH

ManufacturerIllinois Capacitor

DescriptionCAP ALUM 470UF 20% 450V SNAP

DatasheetLBA Series Datasheet

Package / CaseRadial, Can - Snap-In

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description470µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 529.11mOhm @ 120Hz 2000 Hrs @ 85°C

To learn about the specification of 477LBA450M2EH, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 477LBA450M2EH with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 477LBA450M2EH.
We are offering 477LBA450M2EH for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

477LBA450M2EH - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LBA Series Datasheet
Standard Package	40
Manufacturer	Illinois Capacitor
Series	LBA
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	529.11mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-25°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.5A @ 120Hz
Ripple Current @ High Frequency	3.675A @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	2.028" (51.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
