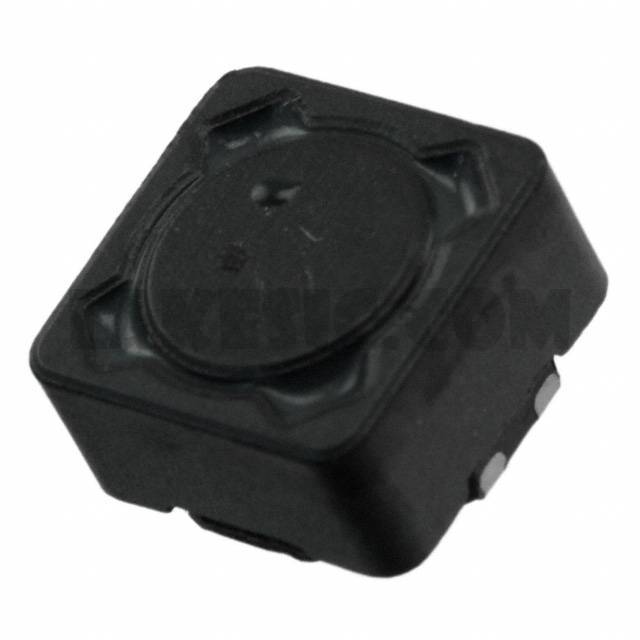

744281100


744281100

Part Number744281100

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744281100 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1000
ManufacturerWurth Electronics Inc.
SeriesWE-SCC
PackagingTape & Reel (TR)
Part StatusActive
Filter TypePower, Signal Line
Number of Lines2
Impedance @ Frequency10 kOhms @ 25MHz
Inductance @ Frequency10µH @ 100kHz
Current Rating (Max)1.1A
DC Resistance (DCR) (Max)120mOhm
Voltage Rating - DC80V
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.287" L x 0.287" W (7.30mm x 7.30mm)
Height (Max)0.189" (4.80mm)
Package / CaseHorizontal, 4 PC Pad
