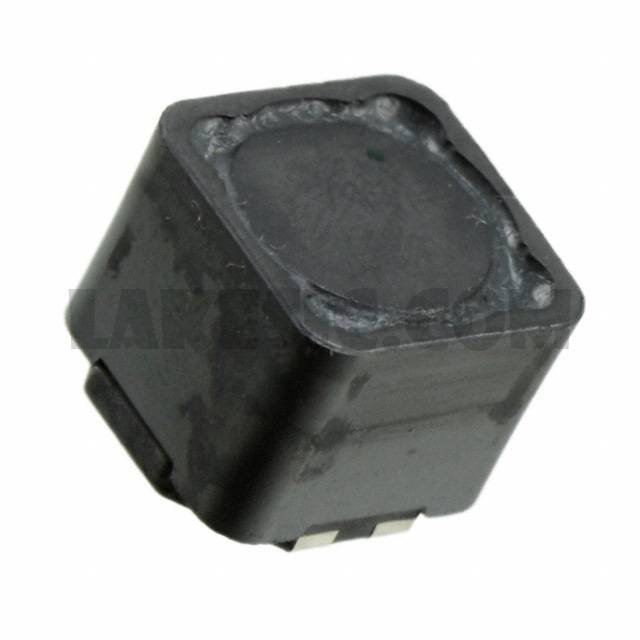

744284100


744284100

Part Number744284100

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744284100 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-SCC
PackagingCut Tape (CT)
Part StatusActive
Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency10 kOhms @ 30MHz
Inductance @ Frequency10µH @ 100kHz
Current Rating (Max)2.75A
DC Resistance (DCR) (Max)40mOhm
Voltage Rating - DC80V
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max)0.413" (10.50mm)
Package / CaseHorizontal, 4 PC Pad

744284100 - Related Products

More >>
744281100 Wurth Electronics Inc., 10µH @ 100kHz 2 Line Common Mode Choke Surface Mount 10 kOhms @ 25MHz 1.1A DCR 120mOhm, WE-SCC View
744282100 Wurth Electronics Inc., 10µH @ 100kHz 2 Line Common Mode Choke Surface Mount 9 kOhms @ 20MHz 2.25A DCR 50mOhm, WE-SCC View
744282010 Wurth Electronics Inc., 1µH @ 100kHz 2 Line Common Mode Choke Surface Mount 1.6 kOhms @ 90MHz 4.75A DCR 12mOhm, WE-SCC View
744282102 Wurth Electronics Inc., 1mH @ 100kHz 2 Line Common Mode Choke Surface Mount 160 kOhms @ 2MHz 250mA DCR 2.8Ohm, WE-SCC View
744282100 Wurth Electronics Inc., 10µH @ 100kHz 2 Line Common Mode Choke Surface Mount 9 kOhms @ 20MHz 2.25A DCR 50mOhm, WE-SCC View
744282101 Wurth Electronics Inc., 100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 40 kOhms @ 7MHz 900mA DCR 280mOhm, WE-SCC View
744281100 Wurth Electronics Inc., 10µH @ 100kHz 2 Line Common Mode Choke Surface Mount 10 kOhms @ 25MHz 1.1A DCR 120mOhm, WE-SCC View
744281101 Wurth Electronics Inc., 100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 50 kOhms @ 7MHz 350mA DCR 950mOhm, WE-SCC View
744284101 Wurth Electronics Inc., 100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 40 kOhms @ 4MHz 1A DCR 280mOhm, WE-SCC View
744281101 Wurth Electronics Inc., 100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 50 kOhms @ 7MHz 350mA DCR 950mOhm, WE-SCC View
744284100 Wurth Electronics Inc., 10µH @ 100kHz 2 Line Common Mode Choke Surface Mount 10 kOhms @ 30MHz 2.75A DCR 40mOhm, WE-SCC View
744284101 Wurth Electronics Inc., 100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 40 kOhms @ 4MHz 1A DCR 280mOhm, WE-SCC View
