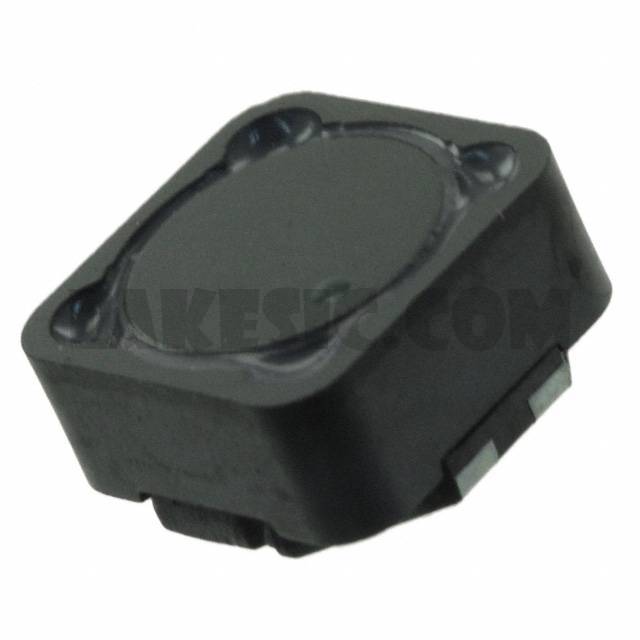

744282010


744282010

Part Number744282010

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744282010 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package500
ManufacturerWurth Electronics Inc.
SeriesWE-SCC
PackagingTape & Reel (TR)
Part StatusActive
Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency1.6 kOhms @ 90MHz
Inductance @ Frequency1µH @ 100kHz
Current Rating (Max)4.75A
DC Resistance (DCR) (Max)12mOhm
Voltage Rating - DC80V
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max)0.256" (6.50mm)
Package / CaseHorizontal, 4 PC Pad
