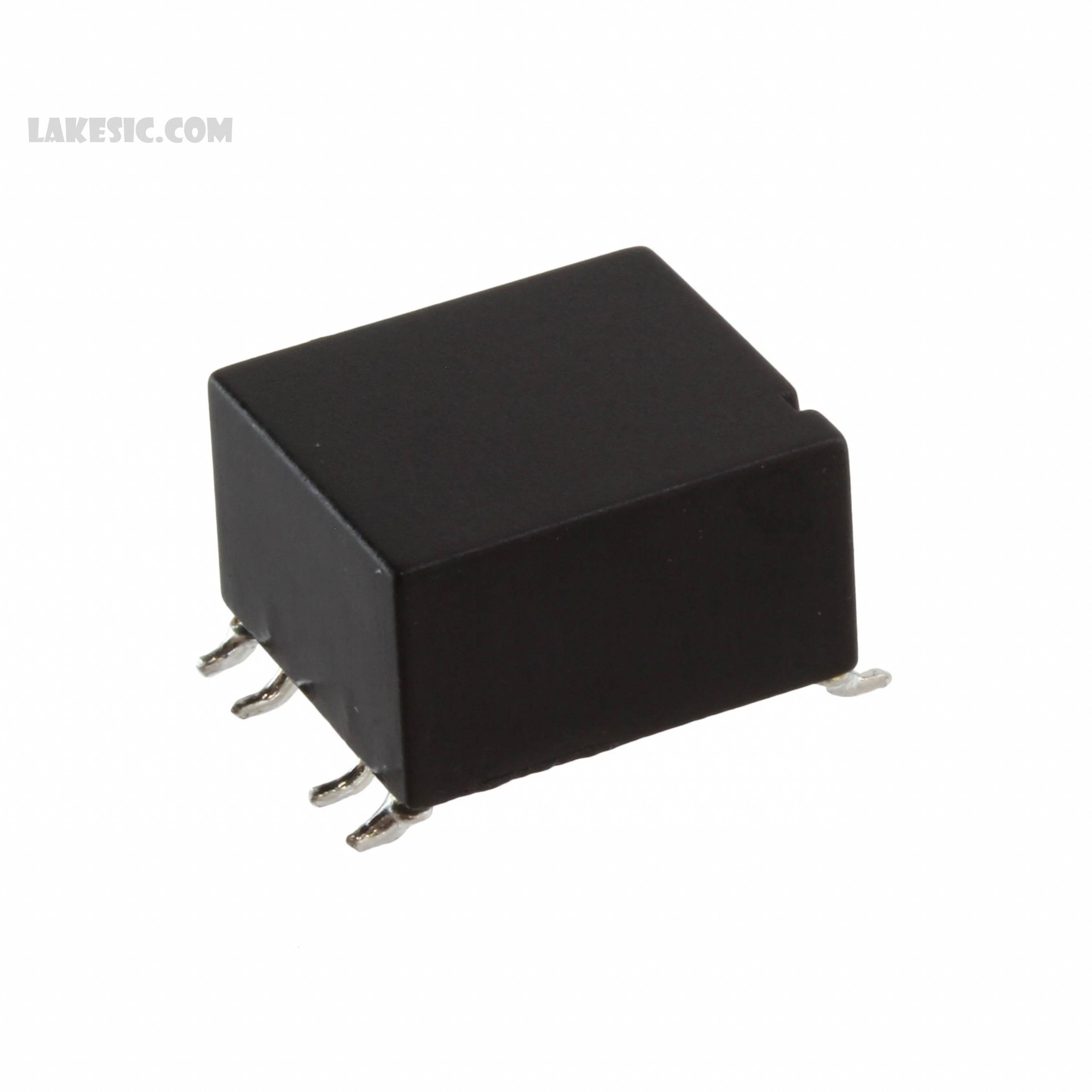

Part Number 744290321 Description CMC 320UH 3.25A 2LN SMD Package / Case Horizontal, 4 Flat LeadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 320µH @ 10kHz 2 Line Common Mode Choke Surface Mount 3.25A DCR 29mOhm
To learn about the specification of 744290321, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744290321 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744290321.
We are offering 744290321 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744290321 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet 744290321 Drawing Standard Package 1 Manufacturer Wurth Electronics Inc. Series WE-UCF Packaging Cut Tape (CT) Part Status Active Filter Type Power, Signal Line Number of Lines 2 Inductance @ Frequency 320µH @ 10kHz Current Rating (Max) 3.25A DC Resistance (DCR) (Max) 29mOhm Voltage Rating - DC 80V Voltage Rating - AC - Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.571" L x 0.492" W (14.50mm x 12.50mm) Height (Max) 0.307" (7.80mm) Package / Case Horizontal, 4 Flat Lead
