744290560
744290560

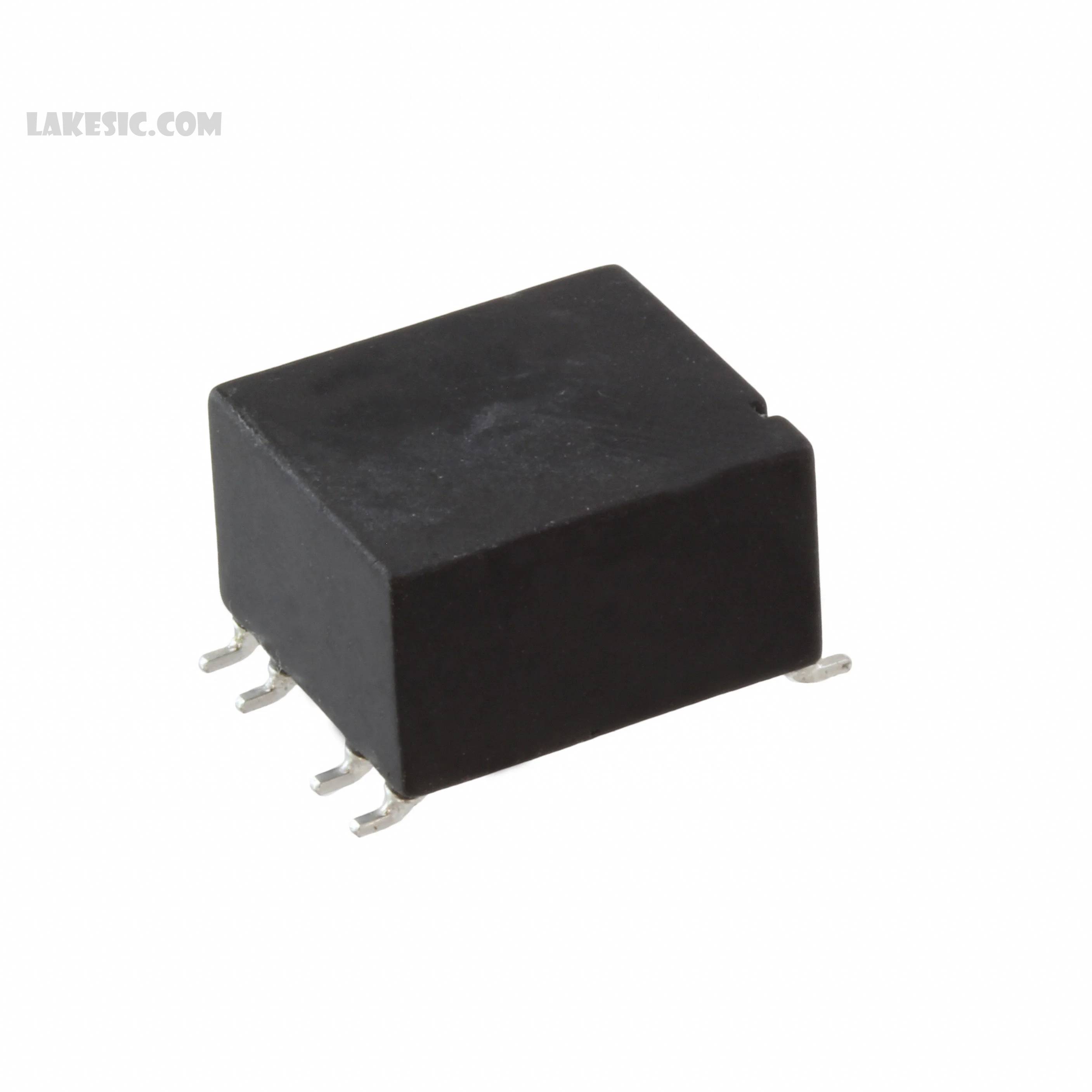

Part Number 744290560 Description CMC 56UH 7A 2LN SMD Package / Case Horizontal, 4 Flat LeadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 56µH @ 10kHz 2 Line Common Mode Choke Surface Mount 7A DCR 4.7mOhm
To learn about the specification of 744290560, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744290560 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744290560.
We are offering 744290560 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744290560 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet 744290560 Drawing Standard Package 250 Manufacturer Wurth Electronics Inc. Series WE-UCF Packaging Tape & Reel (TR) Part Status Active Filter Type Power, Signal Line Number of Lines 2 Inductance @ Frequency 56µH @ 10kHz Current Rating (Max) 7A DC Resistance (DCR) (Max) 4.7mOhm Voltage Rating - DC 80V Voltage Rating - AC - Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.571" L x 0.492" W (14.50mm x 12.50mm) Height (Max) 0.307" (7.80mm) Package / Case Horizontal, 4 Flat Lead
