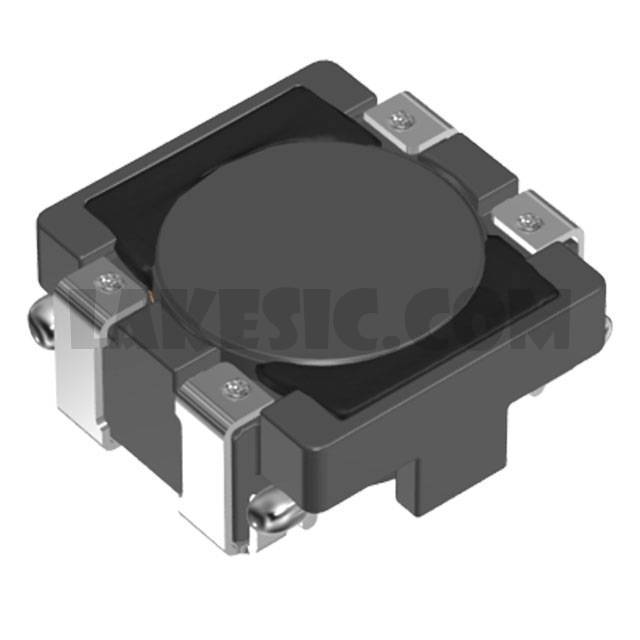

ACM4520V-231-2P-T00
ACM4520V-231-2P-T00
Part Number ACM4520V-231-2P-T00 Description CMC 1.5A 2LN 230OHM SMD AEC-Q200 Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 230 Ohms @ 100MHz 1.5A DCR 50mOhm
To learn about the specification of ACM4520V-231-2P-T00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ACM4520V-231-2P-T00 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ACM4520V-231-2P-T00.
We are offering ACM4520V-231-2P-T00 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ACM4520V-231-2P-T00 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet ACM4520V Series Standard Package 1 Manufacturer TDK Corporation Series ACM-V Packaging Cut Tape (CT) Part Status Active Filter Type Power Line Number of Lines 2 Impedance @ Frequency 230 Ohms @ 100MHz Current Rating (Max) 1.5A DC Resistance (DCR) (Max) 50mOhm Voltage Rating - DC 50V Voltage Rating - AC - Operating Temperature -40°C ~ 125°C Ratings AEC-Q200 Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.185" L x 0.177" W (4.70mm x 4.50mm) Height (Max) 0.079" (2.00mm) Package / Case Horizontal, 4 PC Pad
