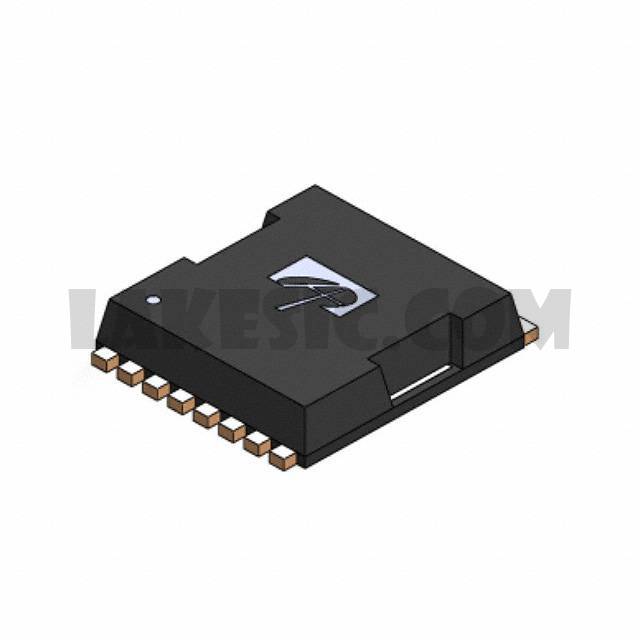

AOTL66401

AOTL66401

Part NumberAOTL66401

ManufacturerAlpha & Omega Semiconductor Inc.

Description40V N-CHANNEL ALPHASGT TM

DatasheetAOTL66401

Package / Case8-PowerSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 82A (Ta), 400A (Tc) 8.3W (Ta), 300W (Tc) Surface Mount TOLLA

To learn about the specification of AOTL66401, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOTL66401 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOTL66401.
We are offering AOTL66401 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AOTL66401 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AOTL66401
Standard Package	2000
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	AlphaSGT™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	82A (Ta), 400A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	340nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	19180pF @ 20V
FET Feature	-
Power Dissipation (Max)	8.3W (Ta), 300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TOLLA
Package / Case	8-PowerSFN
