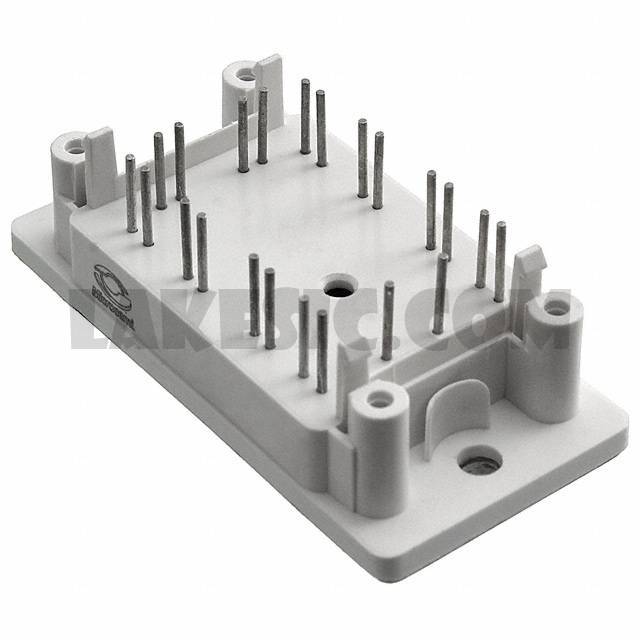

APTGFQ25H120T2G

APTGFQ25H120T2G

Part NumberAPTGFQ25H120T2G

ManufacturerMicrosemi Corporation

DescriptionIGBT 1200V 40A 227W MODULE

DatasheetAPTGFQ25H120T2G

Package / CaseSP2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT and Fieldstop Full Bridge 1200V 40A 227W Through Hole SP2

To learn about the specification of APTGFQ25H120T2G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGFQ25H120T2G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGFQ25H120T2G.
We are offering APTGFQ25H120T2G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGFQ25H120T2G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGFQ25H120T2G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Not For New Designs
IGBT Type	NPT and Fieldstop
Configuration	Full Bridge
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	40A
Power - Max	227W
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 25A
Current - Collector Cutoff (Max)	250µA
Input Capacitance (Cies) @ Vce	2.02nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-
Mounting Type	Through Hole
Package / Case	SP2
Supplier Device Package	SP2
